Yamaha Road Star Midnight Warrior 2007 Fuse Box Info

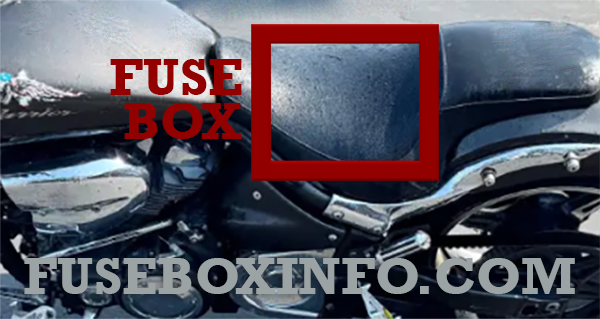

Fuse box location:
The fuse box is located under the rider seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Headlight fuse |
| 2 | 10A | Signaling system fuse |
| 3 | 10A | Ignition fuse |
| 4 | 15A | Fuel injection system fuse |
| 5 | 7.5A | Backup fuse (for odometer and clock) |
| 6 | 15A | Auto-decompression fuse |
| 7 | - | Spare fuse |
| 8 | 10A | ECU fuse |
The main fuse (30A) and spare main fuse are located near to the fuse box.
