Yamaha Star Eluder 2018 Fuse Box Info

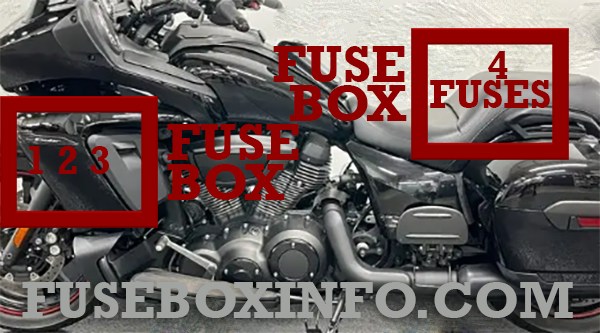

Fuse box location:
Fuse boxes 1, 2, and 3 are located behind cowling A, on the left side. The main fuses, the audio system fuse, and fuse box 4 are located under the seat.
Fuse Box Diagram | Layout
Fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Electronic throttle valve fuse |
| 2 | 10A | Backup fuse 1 (for ECU) |
| 3 | 10A | Headlight fuse |
| 4 | 10A | Baggage fuse |
| 5 | 15A | Heater fuse 2 |
| 6 | - | Spare fuse |
Fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Ignition fuse |
| 2 | 7.5A | Signaling system fuse |
| 3 | 7.5A | Backup fuse 2 (for meter) |
| 4 | 5A | Auxiliary DC jack fuse |
| 5 | 7.5A | Accessory fuse |
Fuse box 3:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Ignition fuse 2 |
| 2 | 7.5A | ABS control unit fuse |
| 3 | 10A | Fuel injection system fuse |
| 4 | 3A | Brake light fuse |
| 5 | 3A | Cruise control fuse |
| 6 | - | Spare fuse |
Fuse box 4:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Heater (ACC) fuse |
| 2 | 7.5A | Heater fuse |
| 3 | 7.5A | Lighting fuse |
| 4 | 3A | Auxiliary DC connector fuse |
| 5 | 15A | ABS solenoid fuse |
| 6 | 30A | ABS motor fuse |
| 7 | - | Spare fuse |
Fuses:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Main fuse |
| 2 | 50A | Main fuse 2 |
| 3 | 15A | Audio system fuse |
| 4 | - | Audio system spare fuse |
