Harley-Davidson FLHXSE Model 2024 Fuse Box Info
Fuse box location:

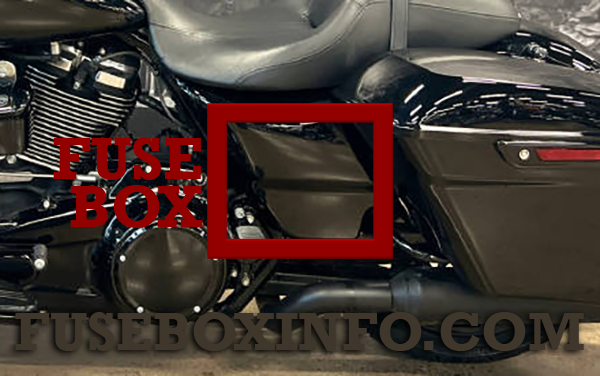

The fuse box is located under left side cover.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Cooling relay |
| 2 | - | Parts and Accessories (P&A) relay |
| 3 | 7.5A | Battery tender |
| 4 | 30A | Front P&A/Amp |
| 5 | 15A | Cooling |
| 6 | 30A | Parts Accessories and Customization (PAC) |
| 7 | 7.5A | Battery |
| 8 | 30A | Rear P&A |
| 9 | 10A | IFCU |
The 60A main fuse is located near the fuse box.
Power lock relays are located under the right side cover.
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Power lock relay |
| 2 | - | Power unlock relay |
