MG ZS EV 2020 Fuse Box Info

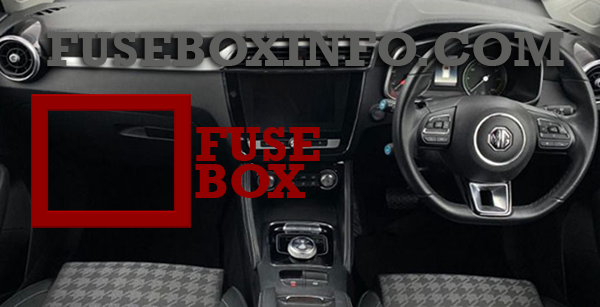

Passenger compartment fuse box location:
The fuse box is located below the glove box at the front passenger side.

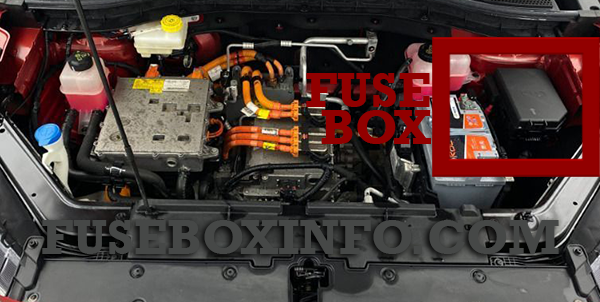

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Charging Plug Unlock Relay, Charging Plug Lock Relay |
| 2 | 10A | Diagnostic Socket |
| 3 | 5A | Charger, EVCC |
| 4 | 15A | Front Wash Relay, Rear Wash Relay |
| 5 | 5A | SDM |
| 6 | 5A | HV PTC, ESS PTC |
| 7 | 10A | ESS (High Voltage Battery) |
| 8 | 5A | TPMS, EPB Switch |
| 9 | 5A | VCU |
| 10 | 10A | PACM |
| 11 | 5A | PEPS |
| 12 | - | - |
| 13 | 30A | Driver Seat Adjust Switch |
| 14 | 5A | IMMO Coil |
| 15 | 15A | Front Power Socket |
| 16 | 5A | Rear USB Charge Module, Master Light Switch, Headlamp Assembly |
| 17 | - | - |
| 18 | 30A | Rear Left Window Lift Switch |
| 19 | 30A | Passenger Window Lift Switch |
| 20 | 30A | Rear Right Window Lift Switch |
| 21 | 30A | Driver Window Lift Motor |
| 22 | 10A | Heated Mirrors |
| 23 | 25A | Rear Windshield Assembly |
| 24 | 20A | FICM, IFP, DAB |
| 25 | 15A | ETC, ACFP |
| 26 | 5A | Instrument Pack |
| 27 | 10A | Driver Door Switch Pack, Master Light Switch |
| 28 | 5A | RLS, Master Radar |
| 29 | 10A | Gateway |
| 30 | 10A | Gateway |
| 31 | 30A | Sunroof ECU |
| 32 | 30A | Sunroof ECU |
| 33 | 5A | SCU |
| 34 | 10A | ESCL |
| 35 | 15A | Super Lock Relay |
| 36-41 | - | - |
| 42 | 30A | EPB |
| 43 | 30A | EPB |
| 44 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | - | - |
| F2 | 15A | PEB Water Pump, Cooling Fan Relay Pack |
| F3 | - | - |
| F4 | - | - |
| F5 | 10A | EVAP |
| F6 | - | - |
| F7 | 30A | Wiper Enable Relay, Wiper Speed Relay |
| F8 | - | - |
| F9 | - | - |
| F10 | 10A | Main Beam-RH |
| F11 | 10A | Main Beam-LH |
| F12 | - | - |
| F13 | 15A | Horn Relay |
| F14 | - | - |
| F15 | 15A | Brake Pedal Switch |
| F16 | 15A | Rear Wiper Relay |
| F17 | 15A | ESS PWM Pump Relay |
| F18 | 5A | SDM |
| F19 | 5A | VCU |
| F20 | - | - |
| F21 | 15A | BCM |
| F22 | 10A | Seat Heat Relay-LH |
| F23 | 10A | Seat Heat Relay-RH |
| F24 | 10A | PEB |
| F25 | 15A | BCM |
| F26 | - | - |
| F27 | 5A | BCM, EVP Relay, Front Breath Lamp |
| F28 | - | - |
| F29 | - | - |
| F30 | 10A | BCM, SCU, Instrument Pack, ADM, FVCM, Front Radar |
| FL1 | 150A | PEB |
| FL2 | 80A | EPS |
| FL3 | 40A | Cooling Fan Relay Pack |
| FL4 | 80A | Passenger Compartment Fusebox Fuse F18, F19, F20, F21, F34, F35, F42, F43 |
| FL5 | 80A | Passenger Compartment Fusebox Fuse F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F13, F14, F24, F25, F26, F27, F28, F29, F30, F31, F32, F33, HRW Relay |
| FL6 | 25A | SCS Valve |
| FL7 | 30A | Blower Motor, ETC |
| FL8 | 20A | BCM |
| FL9 | 40A | SCS Pump |
| FL10 | 30A | BCM |
| FL11 | - | - |
| FL12 | 20A | BCM |
| FL13 | - | - |
| FL14 | - | - |
| FL15 | 30A | KLR Relay |
| FL16 | - | - |
| FL17 | 40A | EVP Relay |
