Ford Focus 2002 Fuse Box Info
Fuse box location:
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| R17 | - | Starter |
| R18 | - | Rear intermittent wiper |
| R19 | - | Front intermittent wiper |
| R20 | - | Not used |
| R21 | - | Not used |
| R22 | - | Not used |
| R23 | - | Horn |
| R24 | - | Battery saver |
| R25 | - | Rear defrost, heated mirrors |
| 30 | 10 A | Light switch |
| 31 | 15 A | Radio |
| 32 | 15 A | Turn signal, Hazard flasher |
| 33 | 20 A | Horn, Power seat |
| 34 | 20 A | Power sunroof |
| 35 | 7.5 A | Interior lamps, power mirrors |
| 36 | 7.5 A | Electronic modules, instrument cluster |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | 15 A | Rear power point |
| 40 | 10 A | Back-up lamps (automatic transmission |
| 41 | 7.5 A | Radio (accessory) |
| 42 | 15 A | Stop lamps |
| 43 | 15 A | Rear wiper |
| 44 | 20 A | Fog lamps |
| 45 | 7.5 A | Recirculated air, air conditioning |
| 46 | 7.5 A | ABS |
| 47 | 20 A | Cigar lighter, front power point |
| 48 | 10 A | Data link connector |
| 49 | 25 A | Rear defrost |
| 50 | 7.5 A | Heated mirrors |
| 51 | - | Not used |
| 52 | 15 A | Heated front seats |
| 53 | 10 A | Back-up lamps (manual transmission) |
| 54 | 25 A | Rear power windows |
| 55 | 25 A | Front power windows |
| 56 | 20 A | Front wipers |
| 57 | 7.5 A | Side lights (right) |
| 58 | 7.5 A | Side lights (left) |
| 59 | 7.5 A | Light switch |
| 60 | 7.5 A | Air bag module |
| 61 | 7.5 A | Electronic modules, instrument cluster |
| 62 | 7.5 A | Licence plate lamps |
| 63 | 20 A | Power locks (GEM) (on back side of fuse panel) |

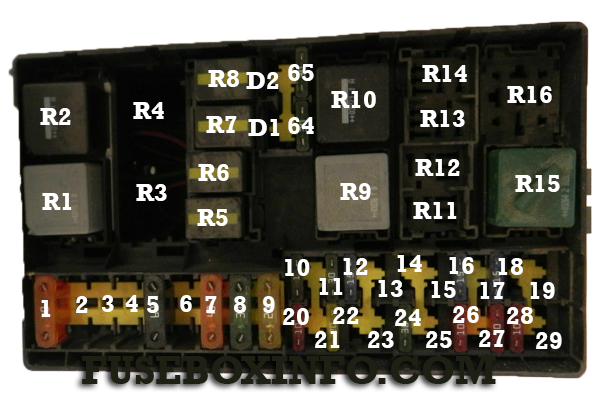

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40 A | Main power supply to electrical system |
| 2 | 30 A | Engine cooling fan (A/C) 2nd fuse |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | 50 A | Engine cooling fan (A/C) 1st fuse |
| 7 | 40 A | Main power supply to electrical system |
| 8 | 30 A | Ignition switch, Starter |
| 9 | 20 A | Engine management |
| 10 | 10 A | Battery voltage sensor, diagnostic plug |
| 11 | 30 A | ABS |
| 12 | 15 A | Fuel pump |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | 10 A | AC clutch solenoid |
| 16 | 10 A | Low beam (left side) |
| 17 | 10 A | Low beam (right side) |
| 18 | 10 A | Heated oxygen sensor |
| 19 | 10 A | Low beam (DRL) |
| 20 | 10 A | Engine management |
| 21 | 20 A | ABS |
| 22 | 20 A | Low beam (DRL) |
| 23 | - | Not used |
| 24 | 30 A | Powered subwoofer |
| 25 | - | Not used |
| 26 | 10 A | High beam (left side) |
| 27 | 10 A | High beam (right side) |
| 28 | - | Not used |
| 29 | - | Not used |
| 64 | 40 A | Heater blower motor |
| 65 | - | Not used |
| R1 | - | Ignition |
| R2 | - | Not used |
| R3 | - | Not used |
| R4 | - | A/C diode |
| R5 | - | High beams |
| R6 | - | Low beams |
| R7 | - | Fuel pump |
| R8 | - | Engine management |
| R9 | - | Not used |
| R10 | - | Not used |
| R11 | - | Air conditioning |
| R12 | - | Daytime running lights |
| R13 | - | Fog lamps |
| R14 | - | Stop lamp inhibit relay (AdvanceTrac Only) |
| R15 | - | Engine cooling fan level 2 (A/C) |
| R16 | - | Engine cooling fan level 1 |
| D1 | - | - |
| D2 | - | - |
