Ford Focus 2005 Fuse Box Info
Fuse box location:
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| R17 | - | Starter |
| R18 | - | Rear wiper intermittent relay |
| R19 | - | Front wiper intermittent relay |
| R20 | - | Not used |
| R21 | - | Not used |
| R22 | - | Decklid/Liftgate release relay |
| R23 | - | Horn relay |
| R24 | - | Battery saver relay |
| R25 | - | Rear defrost/Heated mirror relay |
| 30 | 10 A | Parking lamps |
| 31 | 20 A | Radio |
| 32 | 15 A | Turn signal (GEM) |
| 33 | 20 A | Horn |
| 34 | 20 A | Stand-alone decklid relay (sedan only), Power sunroof |
| 35 | 7.5 A | Interior lamps, power mirrors |
| 36 | 7.5 A | A/C switch, Instrument cluster |
| 37 | 25 A | Decklid/Liftgate release |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | 10 A | Back-up lamps (automatic transaxle only) |
| 41 | 7.5 A | Radio and cluster (accessory) |
| 42 | 15 A | Stop lamps |
| 43 | 15 A | Rear wiper, Sunroof (ignition) |
| 44 | 20 A | Fog lamps |
| 45 | 7.5 A | Recirculated air, Air conditioning |
| 46 | 7.5 A | ABS |
| 47 | 20 A | Cigar lighter/Power point |
| 48 | 10 A | Data link connector |
| 49 | 25 A | Rear defrost |
| 50 | 7.5 A | Heated mirror, Heated backlite indicator |
| 51 | 7.5 A | Front passenger sensing system |
| 52 | 15 A | Heated seats |
| 53 | 10 A | Back-up lamps (manual transaxle only), Speed control |
| 54 | 25 A | Rear power windows |
| 55 | 25 A | Front power windows |
| 56 | 20 A | Front wipers |
| 57 | 7.5 A | Position and side lights (right-hand side) |
| 58 | 7.5 A | Position and side lights (left-hand side), License plate lamps |
| 59 | 7.5 A | Light switch (headlamps) |
| 60 | 7.5 A | Air bag module |
| 61 | 7.5 A | PATS modules, Instrument cluster |
| 62 | 7.5 A | Radio (Start) |
| 63 | 20 A | Power locks (GEM) |

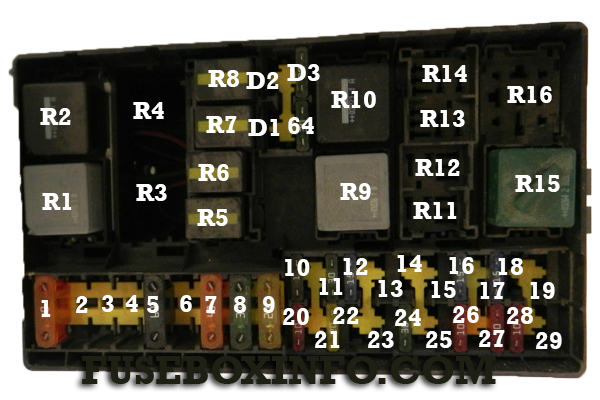

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40 A | Main power supply (to passenger compartment fuse panel) |
| 2 | 30 A | Engine cooling fan (Secondary fuse) |
| 3 | 40 A | Heater blower motor |
| 4 | 30 A | Air pump motor (PZEV engine only) |
| 5 | - | Not used |
| 6 | 50 A | Engine cooling fan (Primary fuse) |
| 7 | 40 A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30 A | Ignition switch, Starter solenoid |
| 9 | 20 A | Engine management |
| 10 | 1 A | Battery voltage sensor |
| 11 | 30 A | ABS (pumps) |
| 12 | 15 A | Fuel pump |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | 10 A | AC clutch solenoid |
| 16 | 10 A | Low beam (left-hand side) |
| 17 | 10 A | Low beam (right-hand side) |
| 18 | 15 A | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 19 | - | Not used |
| 20 | 10 A | Engine module (KAP) |
| 21 | 20 A | ABS (valves) |
| 22 | 20 A | Daytime Running Lights (DRL) |
| 23 | - | Cooling fan (2.3L engine only) |
| 24 | 30 A | Subwoofer |
| 25 | - | Not used |
| 26 | 10 A | Left high beam |
| 27 | 10 A | Right high beam |
| 28 | - | Not used |
| 29 | - | Not used |
| R1 | - | Ignition relay |
| R2 | - | Air pump motor relay (PZEV engine only) |
| R3 | - | Cooling fan (high-speed) |
| R4 | - | Cooling fan (medium-speed) |
| R5 | - | High beams relay |
| R6 | - | Low beams relay |
| R7 | - | Fuel pump relay |
| R8 | - | Engine management relay |
| R9 | - | Cooling fan relay |
| R10 | - | Cooling fan relay |
| R11 | - | A/C clutch solenoid relay |
| R12 | - | DRL relay |
| R13 | - | Fog lamps relay |
| R14 | - | Not used |
| R15 | - | Not used |
| R16 | - | Not used |
| D1 | - | PCM diode |
| D2 | - | Cooling fan diode |
| D3 | - | A/C clutch diode |
| D4 | - | Cooling fan diode |
