Honda Civic 2006 Fuse Box Info

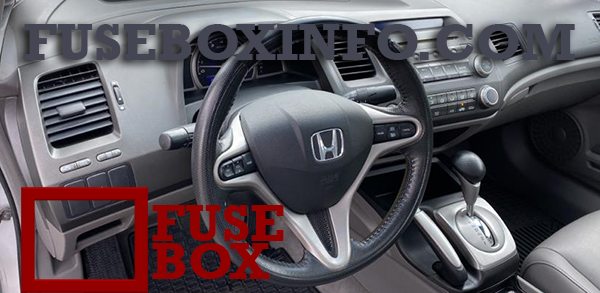

Passenger compartment fuse box location:
The interior fuse box is located under the dashboard.

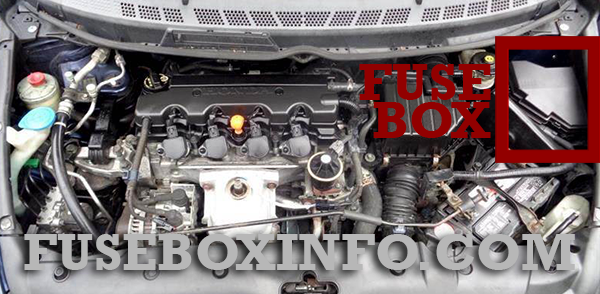

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Power Window |
| 2 | 15A | Fuel Pump |
| 3 | 10A | Alternator |
| 4 | 7.5A | ABS Unit |
| 5 | (15A) | Heated Seat* |
| 6 | (20A) | Fog Lights* |
| 7 | - | Not Used |
| 8 | - | Not Used |
| 9 | 7.5A | ODS |
| 10 | 7.5A | METER |
| 11 | 10A | SRS |
| 12 | 10A | Right Headlight High |
| 13 | 10A | Left Headlight High |
| 14 | 7.5A | Small (Interior) |
| 15 | 7.5A | Small (Exterior) |
| 16 | 10A | Right Headlight Low |
| 17 | 10A | Left Headlight Low |
| 18 | 20A | Headlight High Main |
| 19 | 15A | Small (Main) |
| 20 | - | Not Used |
| 21 | 20A | Headlight Low Main |
| 22 | (7.5A) | (HAC)* |
| 23 | (7.5A) | STS* |
| 24 | (20A) | Moonroof* |
| 25 | 20A | Door Lock |
| 26 | 20A | Driver’s Power Window |
| 27 | (20A) | HAC Option* |
| 28 | (15A) | Rear ACC Socket* |
| 29 | 15A | ACC |
| 30 | 20A | Passenger’s Power Window |
| 31 | - | Not Used |
| 32 | 20A | Right Rear Power Window |
| 33 | 20A | Left Rear Power Window |
| 34 | - | Not Used |
| 35 | 7.5A | ACC Radio |
| 36 | (10A) | (HAC)* |
| 37 | 7.5A | Daytime Running Light |
| 38 | 30A | Wiper |
* If equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
100A 70A |
Main Fuse EPS |
| 2 |
80A 50A |
Option Main Ignition Switch Main |
| 3 |
30A 30A |
ABS ABS |
| 4 |
50A 40A |
Headlight Main Power Window Main |
| 5 | - | Not Used |
| 6 | 20A | Sub Fan Motor* |
| 7 |
20A 30A |
Main Fan Motor (A/T) Main Fan Motor (M/T) |
| 8 | 30A | Rear Defogger |
| 9 | 40A | Blower |
| 10 | 10A | Hazard |
| 11 | 15A | FI Sub |
| 12 | 15A | Stop and Horn |
| 13 | - | Not Used |
| 14 | - | Not Used |
| 15 | 7.5A | IGPS Oil Level |
| 16 | - | Not Used |
| 17 | - | Not Used |
| 18 | 15A | IG Coil |
| 19 | 15A | FI Main |
| 20 | 7.5A | MG Clutch |
| 21 | 15A | DBW |
| 22 | 7.5A | Interior Light |
| 23 | 10A | Back Up |
* If equipped
