Honda Accord 2019 Fuse Box Info
Fuse box location:

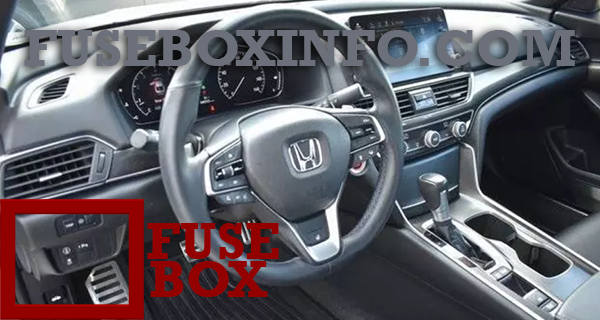

The interior fuse box is under the dashboard on the driver’s side.

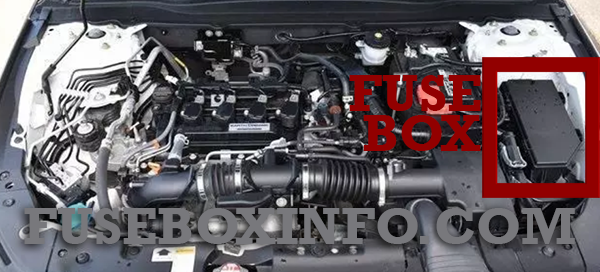

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 10A | L SIDE DOOR UNLOCK |
| 3 | 10A | R SIDE DOOR UNLOCK |
| 4 | 10A | ACC |
| 5 | 7.5A | ACC KEY LOCK |
| 6 | 10A | SRS |
| 7 | - | - |
| 8 | (10A) | IG HOLD2* |
| 9 | 10A | SMART |
| 10 | - | - |
| 11 | 10A | L SIDE DOOR LOCK |
| 12 | (10A) | DR DOOR LOCK |
| 13 | 10A | R SIDE DOOR LOCK |
| 14 | 10A | OPTION |
| 15 | 10A | DRL |
| 16 | (20A) | CTR ACC SOCKET |
| 17 | (20A) | MOON ROOF * |
| 18 | - | - |
| 19 | - | - |
| 20 | (10A) | SBW ECU * |
| 21 | (10A) | DR DOOR UNLOCK |
| 22 | - | - |
| 23 | - | - |
| 24 | (20A) | PREMIUM AMP * |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | (15A) | IG HOLD3 * |
| 33 | (20A) | DR P/SEAT SLI * |
| 34 | (20A) | AS P/SEAT SLI * |
| 35 | 10A | OPTION2 |
| 36 | 10A | METER |
| 37 | 10A | OPTION1 |
| 38 | (20A) | DR P/SEAT REC * |
| 39 | (20A) | AS P/SEAT REC * |
| 40 | (10A) | DR P/LUMBAR * |
| 41 | - | - |
| 42 | (20A) | AVS * |
| 43 | 10A | OPTION |
| 44 | (20A) | ADS * |
| 45 | - | - |
| 46 | 10A | SRS |
| 47 | - | - |
| 48 | (10A) | HUD * |
| 49 | 20A | DOOR LOCK |
| 50 | 20A | FR ACC SOCKET |
| 51 | 20A | RR R P/W |
| 52 | 20A | RR L P/W |
| 53 | 20A | AS P/W |
| 54 | 20A | DR P/W |
| 55 | - | - |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | BATTERY |
| 2 | (70A) | - |
| 70A | EPS | |
| (30A) | - | |
| 60A | FUSE BOX MAIN 2 | |
| 40A | EBB | |
| 40A | ABS/VSA FSR | |
| (30A) | - | |
| 30A | IG MAIN1 | |
| 3 | 40A | REAR DEFROSTER |
| 60A | FUSE BOX MAIN 1 | |
| (30A) | - | |
| 40A | HEATER MOTOR | |
| (40A) | - | |
| 30A | ST MG | |
| 30A | SUB FAN MOTOR | |
| (30A) | - | |
| 4 | (30A) | - |
| (70A) | FUSE BOX OP 2* | |
| (40A) | - | |
| 60A | FUSE BOX OP 1 | |
| 5 | (40A) | - |
| 30A | MAIN FAN MOTOR | |
| 30A | SPM2 | |
| 40A | ABS/VSA MOTOR | |
| 30A | IG MAIN2 | |
| 30A | WIPER MOTOR | |
| 6 | 30A | SRM1 |
| 7 | - | - |
| 8 | - | - |
| 9 | 10A | STOP LIGHT |
| 10 | (15A) | TCU* |
| 11 | 20A | INJ |
| 12 | (10A) | TCU2* |
| 13 | 15A | IGP |
| 14 | (10A) | TCU3* |
| 15 | 10A | FI ECU |
| 16 | 7.5A | BATT SNSR |
| 17 | 15A | DBW |
| 18 | 15A | IG COIL |
| 19 | 15A | HAZARD |
| 20 | - | - |
| 21 | - | - |
| 22 | (10A) | H/STRG* |
| 23 | - | - |
| 24 | 15A | AUDIO |
| 25 | (20A) | REAR H/SEAT* |
| 26 | (15A) | FR WIPER DEICER* |
| 27 | 10A | BACK UP |
| 28 | 10A | HORN |
| 29 | (10A) | FR FOG LIGHT * |
| 30 | (7.5A) | SHUTTER GRILLE* |
| 31 | 10A | MG CLUTCH |
| 32 | 15A | WASHER MOTOR |
| 33 | - | - |
| 34 | (10A) | - |
| 35 | (7.5A) | AUDIO SUB* |
| 36 | 7.5A | IGPS |
| 37 | 7.5A | IGPS (LAF) |
| 38 | 7.5A | VB ACT |
| 39 | (10A) | IG1 TCU* |
| 40 | 20A | IG1 FUEL PUMP |
| 41 | 7.5A | IG1 ABS/VSA |
| 42 | 10A | IG1 ACG |
| 43 | 10A | IG1 ST MOTOR |
| 44 | 7.5A | IG1 MONITOR |
| 45 | - | - |
* Not available on all models
