Jaguar F-Type 2017 Fuse Box Info

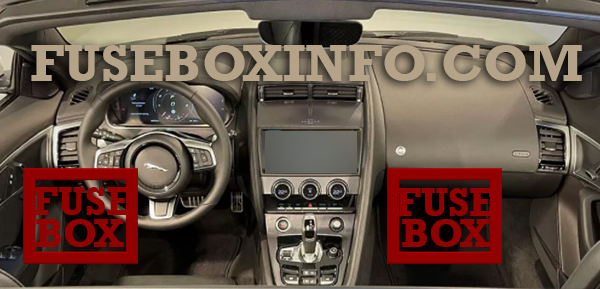

Fuse box location:

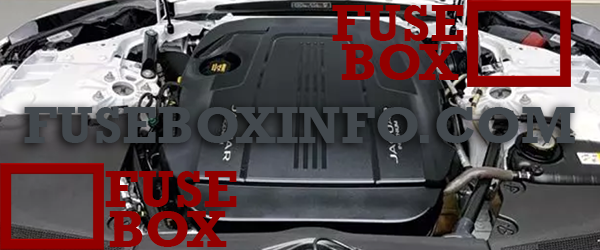

Engine compartment fuse box:

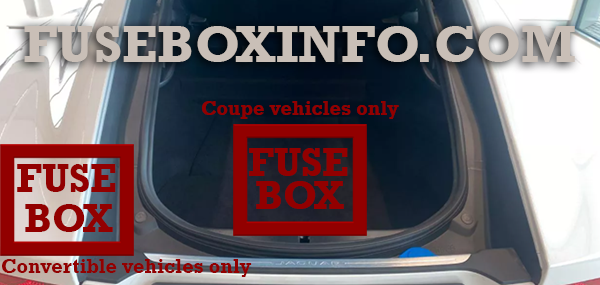

Luggage compartment fuse box:
Fuse Box Diagram | Layout

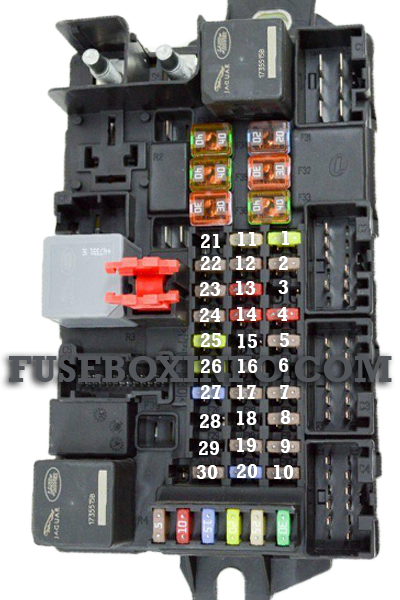

Passenger compartment fuse box (Left side A pillar fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Electric Parking Brake (EPB) (left side) |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | 10A | Instrument panel control, Instrument panel fan |
| 6 | 15A | Convertible roof (front latch) |
| 7 | - | - |
| 8 | 5A | Keyless vehicle module (logic) |
| 9 | 15A | Convertible roof (down lock) |
| 10 | 10A | Air Conditioning (A/C) |
| 11 | 25A | Heated front seat |
| 12 | 5A | Seat switch power |
| 13 | 10A | Deployable Rear Spoiler (DRS), JaguarDrive control switch |
| 14 | - | - |
| 15 | 25A | Tailgate |
| 16 | 30A | Electric Parking Brake (EPB) (right side) |
| 17 | 10A | Adaptive damping control, Chassis control module |
| 18 | - | - |
| 19 | 30A | Fuel pump |
| 20 | - | - |
| 21 | 10A | Rear camera, Headlamps, Blind Spot Monitoring (BSM), Park Distance Control, Interior mirror |
| 22 | 5A | Right side headlamp motor |
| 23 | 5A | Left side headlamp motor |
| 24 | 5A | Headlamp leveling |
| 25 | 10A | Instrument panel control, Instrument panel fan |
| 26 | 5A | Gateway module |
| 27 | - | - |
| 28 | - | - |
| 29 | 10A | Rear camera, Headlamps, Blind Spot Monitoring (BSM), Park Distance Control, Interior mirror |
| 30 | 5A | Normal mode (or Transport mode) |

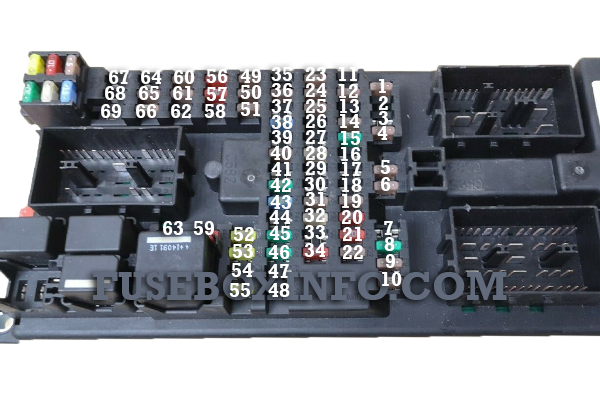

Passenger compartment fuse box (Passenger side foot-well fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Radio Frequency (RF) receiver, Interior motion sensor, Tire Pressure Monitoring Sensor (TPMS) |
| 2 | - | - |
| 3 | - | - |
| 4 | 5A | CAN gateway module |
| 5 | 5A | Anti-lock Braking System (ABS), Steering angle sensor |
| 6 | - | - |
| 7 | - | - |
| 8 | 30A | Right side seat (power 2) |
| 9 | 5A | Electric Parking Brake (EPB) |
| 10 | 5A | Adaptive damping control |
| 11 | - | - |
| 12 | 5A | Reverse lamps and Mirror dimming inhibit |
| 13 | - | - |
| 14 | 5A | Brake pedal switch |
| 15 | 30A | Heated rear screen |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | 5A | Powertrain control module, Electronic control module |
| 20 | 10A | Heated steering wheel |
| 21 | 10A | Passenger air bag disable lamp (overhead console) |
| 22 | 5A | Transmission control module, Rear differential, Electronic transmission switch (ignition signal) |
| 23 | 5A | Fuse box suppression |
| 24 | 5A | Right side rear fog lamp |
| 25 | 5A | Left side rear fog lamp |
| 26 | - | - |
| 27 | - | - |
| 28 | 25A | Door module (right side) |
| 29 | - | - |
| 30 | - | - |
| 31 | 5A | Rain sensor, Climate control sensors |
| 32 | 25A | Door module (left side) |
| 33 | - | - |
| 34 | 10A | Cubby box lock, Stowage box lock |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | 15A | Front screen washer |
| 39 | - | - |
| 40 | - | - |
| 41 | - | - |
| 42 | 30A | Left side seat (power 1) |
| 43 | 10A | Active exhaust |
| 44 | - | - |
| 45 | 30A | Right side seat (power 1) |
| 46 | 30A | Left side seat (power 2) |
| 47 | - | - |
| 48 | - | - |
| 49 | - | - |
| 50 | - | - |
| 51 | 5A | Steering wheel switches |
| 52 | 20A | Accessory socket (center) |
| 53 | 20A | Accessory socket/cigar lighter (cubby box) |
| 54 | - | - |
| 55 | - | - |
| 56 | 10A | Restraint control module |
| 57 | 10A | Glove box lamp, Reading lamps |
| 58 | - | - |
| 59 | 10A | Door soft close (close and reverse) |
| 60 | 5A | Occupant control sensor |
| 61 | 5A | Immobiliser antenna unit |
| 62 | - | - |
| 63 | - | - |
| 64 | - | - |
| 65 | - | - |
| 66 | - | - |
| 67 | - | - |
| 68 | - | - |
| 69 | - | - |

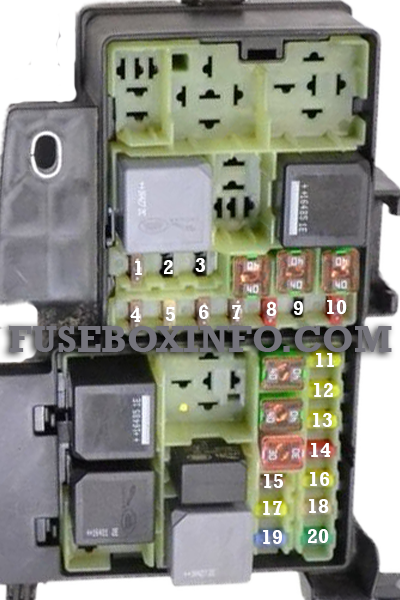

Engine compartment fuse box (Left side fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Diagnostic socket |
| 2 | 20A | Washer transfer pump |
| 3 | - | - |
| 4 | 5A | Starter motor monitor |
| 5 | 25A | Engine management (ignition coils) |
| 6 | 5A | Engine management (MAF sensors) |
| 7 | 5A | Engine management (sensors) |
| 8 | 10A | Engine management (actuators) |
| 9 | 10A | Engine management (throttle motor) |
| 10 | 15A | Engine management (variable valve timing) |
| 11 | 20A | Engine management (oxygen sensor-left side) |
| 12 | 20A | Engine management (oxygen sensor-right side) |
| 13 | 20A | Engine management (catalyst oxygen sensor) |
| 14 | 10A | Electric water pump |
| 15 | 5A | Active exhaust valve |
| 16 | - | - |
| 17 | 5A | Engine management system |
| 18 | 30A | Anti-lock Braking System (ABS)valves |
| 19 | 15A | Electronic transmission switch, Transmission control module |
| 20 | 30A | All Wheel Drive system |

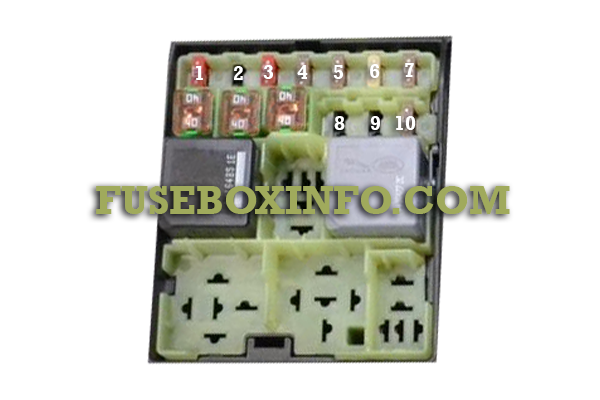

Engine compartment fuse box (Right side fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Headlamp wash |
| 2 | - | - |
| 3 | 15A | Horns |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |

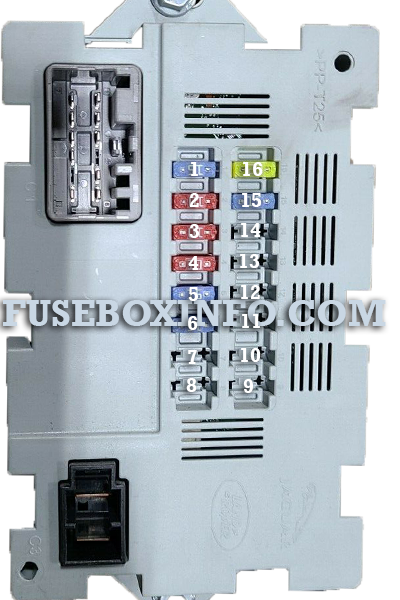

Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Touch screen, Front integrated control panel |
| 2 | 10A | Audio amplifier |
| 3 | - | - |
| 4 | 10A | Satellite radio, Navigation system |
| 5 | 15A | Audio head unit |
| 6 | 15A | Audio video input/output panel |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Front integrated control panel (heating and ventilation) |
| 16 | - | - |
