Kia Rio 2004 Fuse Box Info
Passenger fuse box location:
The fuse box is located behind the cover below the steering wheel.

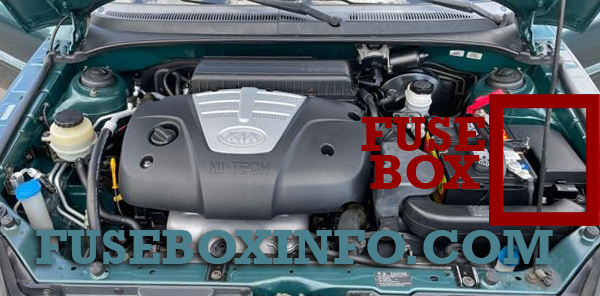

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| (A/BAG) | 10A | Airbag |
| TURN LAMP | 10A | Turn signal lamp |
| METER | 10A | Meterset, Backup lamp, Warning sound |
| ILLUMI | 10A | Illumination |
| POWER SOCKET | 15A | Trunk room lamp, Power socket |
| HAZARD | 10A | Hazard lamp |
| STOP | 15A | Stop lamp, ABS |
| TAIL(RH) | 10A | Tail lamp (Right-Rear/Left-Front), Switch illumination |
| TAIL(LH) | 10A | Tail lamp (Left-Rear/Right-Front) |
| CIGAR | 15A | Cigarette lighter |
| AUDIO | 15A | Audio, Electric rearview mirror |
| WIPER(FRT) | 15A | Wiper(front), Washer(front), Sunroof |
| WIPER(RR) | 15A | Wiper(Rear), Washer(Rear) |
| (WARMER) | 20A | Seatwarmer |
| MIRROR DEF | 15A | Mirror defroster |
| START | 10A | Engine control unit, ECAT unit |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| (ABS) | 15A | ABS |
| RR FOG | 10A | Rear fog light (if equipped) |
| (F/FOG) | 15A | Front fog light (if equipped) |
| MAIN | 80A | Battery is not rechargeable |
| IG KEY 1 | 30A | (It will be automatically connect ed to the secondary fuse.) CIGAR 10A,AUDIO 10A, IG COIL 15A, TURN LAMP 10A,A/BAG 10A, WIPER(RR) 15A,WIPER(FRT) 15A, RELAY 10A, START 10A |
| BLOWER | 30A | Heater |
| COOLING | 30A | Cooling fan |
| (ABS 1) | 30A | ABS |
| COND. FAN | 20A | Condenser fan |
| HEAD-HI | 15A | Head lamp high |
| HEAD-LOW | 15A | Head lamp low |
| EMS | 10A | Engine sensors |
| INJECTOR | 15A | Injector, 02 sensor |
| F/PUMP | 10A | Fuel pump |
| ECU | 10A | Engine control unit, ECAT unit, Main relay |
| RELAY | 10A | Blower motor, Power window, Rear window defroster, Head lamp(Airbag equipped vehicle) |
| (HLLD) | 10A | Headlight Leveling Device (if equipped) |
| MAIN RELAY | 25A | (It will be automatically connected to the secondary fuse.) EMS 10A, INJECTOR 15A, F/PUMP 10A, ECU 10A |
| S/ROOF | 15A | Sunroof |
| HEAD | 25A | (It will be automatically connect ed to the secondary fuse.) HEAD-HI 15A, HEAD-LOW 15A, FOG LAMP(RR) 10A |
| IG KEY 2 | 30A | - |
| TNS | 15A | (It will be automatically connect ed to the secondary fuse.) TAIL (LH) 10A, TAIL(RH) 10A |
| HORN | 10A | Horn |
| RR DEF | 25A | Rear window defroster |
| (ABS 2) | 20A | ABS |
| P/WIN | 30A | Power window |
| BTN | 30A | (It will be automatically connect ed to the secondary fuse.) MEMORY/ROOM 10A, STOP 15A, HAZARD 15A |
| (D/LOCK) | 25A | Power door lock |
| IG COIL | 15A | Ignition coil |
| MEMORY/ROOM | 15A | Room LAMP, Audio, Meterset, Warning sound |
