Kia Magentis 2010 Fuse Box Info

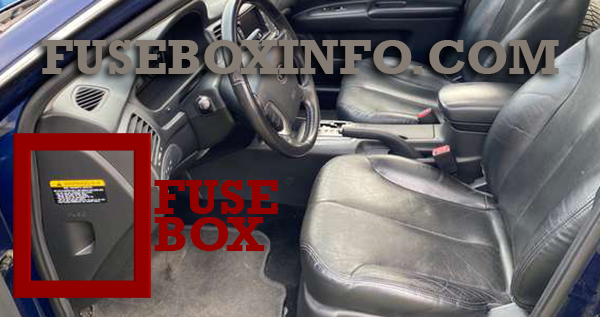

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

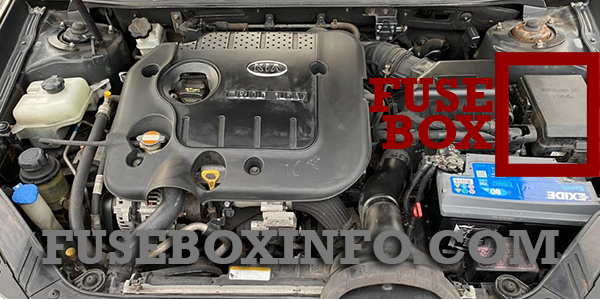

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| D/CLOCK | 10A | O/S MIRROR SW, AUDIO, ETACS, D/CLOCK |
| C/LIGHTER | 15A | C/LIGHTER |
| A/BAG | 15A | ACU, PAB_DISPLAY, PAB C_OFF SW |
| T/SIG | 10A | TURN LAMP, S/REPEATER LAMP, M/F SW, HAZARD SW, CLUSTER |
| CLUSTER | 10A | CLUSTER, ETACS, PDM_UNIT_B |
| A/BAG IND | 10A | CLUSTER |
| MODULE-1 | 10A | S_REMOCON SW, BWS BUZZER, PIC UNIT A, S_ANGLE SNSR, ESC SW |
| TELL TAIL | 10A | D/CLOCK(TELLTALE) |
| H/LP | 10A | H/LP LOW RLY COIL, H/LP HIGH RLY COIL |
| WIPER | 25A | WASHER MTR, WIPER MOTOR, WIPER RLY |
| A/CON | 10A | A/CON AUTO_1 |
| EPS | 10A | EPS UNIT, PDM_UNIT_B |
| MODULE-2 | 10A | BLOWER RLY COIL, ETACS, S/ROOF, WIPER HI RLY COIL, CLUSTER, RAIN SENSOR, RHEOSTAT, S/WARMER RLY COIL, AIH SNSR |
| A/CON S/W | 10A | A/CON AUTO_2 |
| START | 10A | START RLY COIL, INHIBITOR SW, CLUTCH LOCK SW |
| AUDIO | 15A | AV, AUDIO |
| MEMORY | 15A | T/ROOM LAMP, ETACS, CLUSTER, D/CLOCK, A/CON MANU_AUTO, KEY_ILL(+), SUN VISOR LAMP, ROOM LAMP, O/H CONSOLE LP, DR LAMP |
| P/SEAT LH | 30A | P/SEAT LH |
| P/SEAT RH | 30A | P/SEAT_RH |
| ECS/RR FOG | 15A | RR FOG SW(IND.), RR FOG LAMP, ETACS |
| W/DEICER | 15A | FRT_GLASS_HTD, ETACS |
| P/WDW LH | 25A | P/WDW MTR LH |
| P/WDW RH | 25A | P/WDW MTR RH |
| SAFETY PWR | 20A | SAFETY WDW |
| MIRR HTD | 10A | RR MIRROR HTD |
| T/LID OPEN | 15A | F/FILLER ACTR, LATCH_T_LID, ETACS |
| ADJ PEDAL | 10A | KEY SOL, ATM SOL, ADJ PEDAL SW, ADJ PEDAL MTR, ATM&K/LOCK CTRL UNIT |
| STOP LP | 15A | STOP LAMP, HIGH MOUNTED STOP LAMP |
| HAZARD | 15A | TURN LAMP, S/REPEATER LAMP, CLUSTER, ETACS, OBDII |
| TPMS (if equipped) | 10A | DR WARN PIC SW, PIC UNIT_A, FOB_HOLDER_EXTN |
| DR LOCK | 25A | D/LOCK MOTOR, T/TURN UNLOCK MTR, ETACS |
| TAIL LH | 10A | FRT FOG RLY COIL, COMBI LP_LH, LICENSE LAMP_LH, POS.LP LH |
| TAIL RH | 10A | POS.LP RH, GLOVE BOX LP, COMBI LP_RH, LICENSE LAMP_RH, RR.FOG SW, P/WINDOW SW, ESP SW, HAZARD SW, A/CON SW, SEAT WARMER SW, A.CON SW, S_REMOCON_SW, SPORT_MODE_SW |
| BLOWER MTR | 10A | BLOWER_MTR |
| SPARE | 10A | - |
| PDM-1 | 10A | PDM_UNIT_B, SSB |
| PDM-2 | 20A | PDM_UNIT_A |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT |
150A(2.7L) 125A(2.4L) |
FUSIBLE LINK, FUSE |
| IGN1 | 30A | FUSE (A/BAG, TURN, CLUSTER, TELTAIL, A/BAG IND., 21, PCU, MODULE-1, SPARE) |
| IGN2 | 30A | FUSE (MODULE-2, H/LP, A/CON, WIPER, SPARE, SATRT), BUTTON RELAY |
| TAIL | 20A | TAIL_LP_LH, TAIL_LP_RH |
| RR HTD | 40A | MIRR HTD, RR_HTD_RELAY |
| BLOWER | 40A | BLOWER MTR, FUSE (A/CON SW) |
| I/P B+1 | 30A | FUSE (HAZARD, STOP LP, TPMS, T/LID, PEDAL ADJ, DR_LOCK) |
| I/P B+2 | 50A | P/WINDOW RELAY, FUSE (RR FOG, P/SEAT_LH, P/SEAT_RH, W/DEICER, POWER CONNECTOR, PDM_1, PDM_2) |
| ECU RLY | 30A | PCU, IGN COIL, INJECTOR, SENSOR |
| 1 RAD FAN |
40A(2.7L) 30A(2.4L) |
RAD FAN MTR |
| 2 ABS1 | 40A | ABS/ESC UNIT |
| 3 ABS2 | 40A | ABS/ESC UNIT |
| 4 A/CON | 10A | A/CON COMPRESSOR |
| 5 S/WARMER | 25A | S/WARMER_LH, S/WARMER_RH |
| 6 P/AMP | 20A | P/AMP, AV-AMP |
| 7 S/ROOF | 20A | S/ROOF MTR |
| 8 P/OUTLET | 25A | P/OUTLET |
| 9 FRT FOG | 15A | FRT FOG LAMP |
| 10 HEAD LP HI | 15A | HEAD LP HI |
| 11 HEAD LP LOW | 15A | HEAD LP LOW |
| 12 HORN | 15A | HORN, B/ALARM HORN, HORN SW |
| 13 SNSR1 | 15A | MAP, MAF, CMP, CCV, VIS, CPSV, ISCA, OCV, EGR, CAM, CKP, TDC SENSOR |
| 14 SNSR2 | 15A | O2 SENSOR, EGR ACTR |
| 15 SNSR3 | 15A | INJECTOR, PCU |
| 16 IGN COIL | 20A | IGN COIL, PCU, O2 SENSOR |
| 17 ECU-1 | 20A | PCU |
| 18 F/PUMP | 20A | F/PUMP MTR |
| 19 ECU | 10A | PCU |
| 20 ATM | 20A | TCU, ATM_SOLENOID |
| 21 BACK UP | 10A | BACK UP LAMP, ECM MIRROR, BWS UNIT |
| 22 ABS | 10A | ABS/ESC UNIT |
| 23 PCU | 10A | PCU, SPEED SENSOR |
| 24 DRL | 15A | DRL CONTROL MODULE |
