Kia Stinger 2022 Fuse Box Info

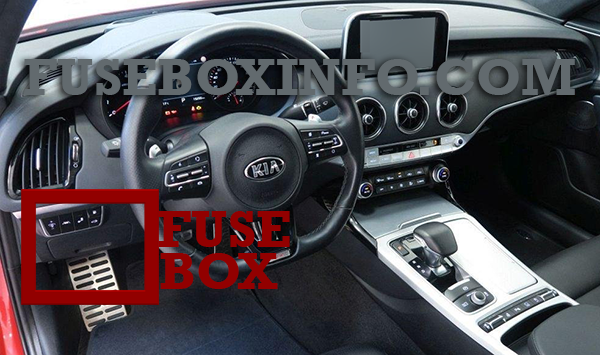

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

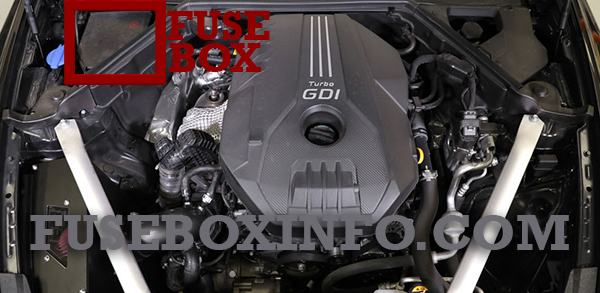

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MULTI MEDIA 1 | 25A | Low DC-DC Converter (Audio) |
| AIR BAG | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| ROOM LAMP | 10A | Overhead Console Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp |
| STOP LAMP | 10A | IBU, Stop Lamp Switch |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| E-SHIFTER 2 | 10A | Electronic Auto Transmission Shift Lever (IG1) |
| IBU 4 | 10A | IBU (IG1) |
| MULTI MEDIA 3 | 10A | Instrument Cluster, Head-Up Display, Air Conditioner Switch, Wireless Charger |
| MULTI MEDIA 2 | 10A | Audio or A/V & Navigation Head Unit |
| MEMORY | 10A | Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display |
| IBU 3 | 10A | IBU (B+) |
| E-SHIFTER 1 | 10A | Electronic Auto Transmission Shift Lever (B+) |
| AIR BAG IND | 10A | Instrument Cluster, Passenger/Rear Seat Belt Reminder Indigator |
| IBU 1 | 10A | IBU (B+) |
| DRIVER DOOR MODULE | 10A | Driver Door Module, Driver/Passenger Power Outside Mirror |
| MODULE 2 | 10A | IBU (IG2) |
| MODULE 3 | 10A | Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay |
| SEAT HEATER | 25A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| TAILGATE | 10A | Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch |
| IBU 2 | 10A | IBU (B+ (ESCL)), Rain Sensor |
| MODULE 8 | 10A | Cooling Fan Controller (BLDC Motor) |
| MODULE 7 | 10A | IBU, AWD (All Wheel Drive) ECM (Electronic Control Module), Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), 360/ camera monitoring, Crash Pad Switch, Steering Angle Sensor, Steering Tilt & Telescopic Module, ESC (Electronic Stability Control) Unit, Multi-Function Camera Unit, Front Radar |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Module |
| MODULE 9 | 10A | Driver Air Lumbar Control Unit |
| MODULE 1 | 10A | Data Link Connector, Console Switch (Upper), Driver/ Passenger/Door Mood Lamp, Mood Lamp (Garnish), Mood Lamp Monitor, Hazard Switch, Mood Lamp Unit |
| MODULE 5 | 10A | Air Conditioner Control Module, Air Conditioner Switch, Audio, A/V & Navigation Head Unit, Data Link Connect, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, Wireless Charger |
| SUNROOF | 20A | Sunroof Control Unit (Glass) |
| PASSENGER POWER WINDOW | 25A | Passenger Safety Power Window Module, Rear Safety Power Window Module Right Handle side, Rear Door Module Right Handle side |
| CHARGER | 10A | Front/Rear USB Charger, Front Power Outlet (Cigar) |
| WASHER | 15A | Multifunction Switch |
| MDPS | 10A | MDPS (Motor Driven Power Steering) Unit |
| DRIVER POWER SEAT | 30A | Driver Integrated memory system Control Module, Driver Seat Manual Switch |
| PASSENGER POWER SEAT | 30A | Passenger Seat Manual Switch |
| DRIVER POWER WINDOW | 25A | Driver Power Window Module, Rear Power Window Module Left Handle side, Rear Safety Power Window Module Left Handle side |
| MODULE 6 | 10A | IBU, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (Power Outlet Relay) |
| A/C | 10A | Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
| MODULE 4 | 10A | Head Lamp Left Handle side/Right Handle side, AFS Control Unit |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT |
175A 200A |
Alternator, Multi Fuse - C/FAN1/B+4/B+3/B+2/B+1/ EOP/BLOWER/POWER TAIL GATE |
| START | 30A | Start Relay |
| C/FAN 2 | 100A | [BLDC (Brushless Direct Current) Motor & (Gasoline) 3.3 T-GDi] ] Cooling Fan Controller |
| C/FAN 1 | 80A | [BLDC (Brushless Direct Current) Motor Smartstream G2.5 FR T-GDi] Cooling Fan Controller |
| B+3 | 50A | Instrument Panel Junction Block (Fuse - STOP LAMP/ Leak Current Autocut Device (Fuse - INTERIOR LAMP, DDM, IBU3, MEMORY, MULTI MEDIA1, MULTI MEDIA2, MULTI MEDIA3)) |
| B+2 | 50A | Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE/SUNROOF/DRIVER POWER SEAT/ PASSENGER POWER SEAT) |
| B+1 | 50A | Instrument Panel Junction Block (Fuse - SEAT HEATER/TAIL GATE/MODULE 9/PASSENGER POWER WINDOW/DRIVER POWER WINDOW) |
| EOP | 50A | Electric Oil Pump |
| ESC 1 | 25A | ESC (Electronic Stability Control) Control Module |
| ESC 2 | 25A | ESC (Electronic Stability Control) Control Module |
| BLOWER | 40A | Blower Relay |
| POWER TAILGATE | 30A | Power Tail Gate Module |
| MDPS | 100A | MDPS (Motor Driven Power Steering) Unit |
| B+4 | 60A | Engine Control Relay, Fuse - HORN / WIPER1 / H/ BEAM H/LAMP / B/ALARM) |
| E-CVVT 1 | 40A | [Smartstream G2.5 FR T-GDi] E-CVVT Relay |
| VACUUM PUMP | 20A | [(Gasoline) 2.0 FR T-GDi, (Gasoline) 3.3 T-GDi] Vacuum Pump Relay |
| AWD | 20A | AWD (All Wheel Drive) ECM (Electronic Control Module) |
| IG 2 | 20A | IG2 Relay |
| POWER OUTLET 2 | 20A | Rear Power Outlet |
| POWER OUTLET 1 | 20A | Front Power Outlet #1 |
| A/C 1 | 10A | Air Conditioner Control Module |
| E-CVVT 3 | 20A | [Smartstream G2.5 FR T-GDi] ECM (Engine Control Module) |
| E-CVVT 2 | 20A | [Smartstream G2.5 FR T-GDi] ECM (Engine Control Module) |
| ESC 3 | 10A | ESC (Electronic Stability Control) Control Module |
| ECU 3 | 10A | ECM (Engine Control Module) |
| ECU 2 | 15A | ECM (Engine Control Module) |
| HORN | 20A | Horn Relay |
| WIPER 1 | 30A | Wiper Power Relay |
| TCU 2 | 15A | TCM (Transmission Control Module), Electronic Oil Pump |
| O2SENSOR | 15A | [Smartstream G2.5 FR T-GDi] Oxygen Sensor (UP/ DOWN) [(Gasoline) 3.3 T-GDi] Oxygen Sensor #1/#2/#3/#4 |
| TCU 1 | 20A | TCM (Transmission Control Module) |
| WIPER 2 | 10A | ECM (Engine Control Module), IBU, Wiper Motor, Front Wiper (Low) Relay |
| SENSOR 1 | 15A | Fuel pump relay [Smartstream G2.5 FR T-GDi ] Injector #1/#2/#3/#4 |
| IGN COIL | 20A | [Smartstream G2.5 FR T-GDi] Ignition Coil #1/#2/#3/#4 [(Gasoline) 3.3 T-GDi] Ignition Coil #1/#2/#3/#4/#5/#6 |
| H/BEAM H/LAMP | 10A | Head Lamp (High) Relay |
| ECU 1 | 20A | ECM (Engine Control Module) |
| SENSOR 2 | 10A | Recirculation Valve Control Solenoid Valve, Purge Control Solenoid Valve, Canister Close Valve[Smartstream G2.5 FR T-GDi] Variable Oil Pump, Oil Control Valve, Air Conditioner Relay [(Gasoline) 3.3 T-GDi] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/ #3/#4 (Intake/Exhaust), Variable Exhaust Flap Actuator LH/RH |
| EWP | 20A | Electric Water Pump |
| A/C 2 | 10A | Air Conditioner Relay |
Luggage compartment:
Rear fuse box panel:
| Fuse/Relay Name | Rating | Functions |
| ECS | 15A | ECS (Electronic Control Suspension) Unit |
| REAR S/HEAT | 20A | Rear Seat Warmer Control Module |
| HEAT MIRROR | 10A | Air Conditioner Switch, Driver/Passenger Power Outside Mirror |
| FUEL PUMP | 20A | Fuel Pump Relay |
| REAR HEATED | 30A | Rear Heated Relay |
| AMP 2 | 25A | AMP (Amplifier) (MOBIS/PREMIUM) |
| AMP 1 | 30A | Low DC-DC Converter (AMP (Amplifier)) |
| IG 1 | 15A | IG1 Relay |
| ACC | 30A | Instrument Panel Junction Block ((Fuse - POWER OUTLET/ CHARGER/ MODULE6) |
| B+1 | 30A | Instrument Panel Junction Block (Fuse - IBU1/IBU2/ IPS2/IPS5/IPS6/IPS8/IPS9/IPS10)) |
| B+2 | 30A | Instrument Panel Junction Block (Fuse - E-SHIFTER/ MODULE1/IPS1/IPS4/IPS7) |
Battery box fuse panel:
| Fuse/Relay Name | Rating | Functions |
| B+1 | 100A | Rear Sub Junction Block (Fuse - FUEL PUMP / REAR HEATED/ AMP1) |
| B+2 | 80A | Rear Sub Junction Block (DCU Relay, Fuse - ECS1 / REAR S/HEAT / IG1) |
| START | 40A | Engine Room Junction Block (Power Outlet Relay), Fuse -START / ECU2 / TCU1) |
| AMS | 10A | Battery Sensor |
