Opel Mokka X 2018 Fuse Box Info
Passenger compartment fuse box location:

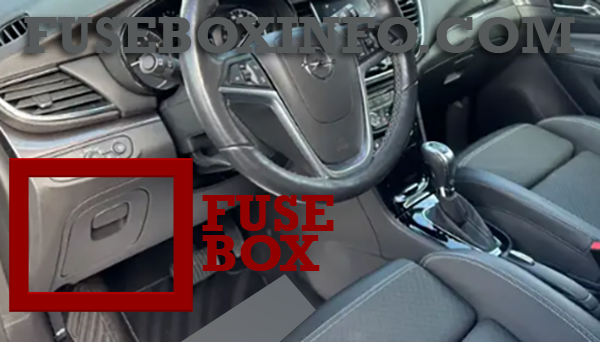

The fuse box is located on the underside of the driver's side instrument panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:
The fuse box is located on the left side of the luggage compartment behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Body control module |
| 2 | Body control module |
| 3 | Body control module |
| 4 | Body control module |
| 5 | Body control module |
| 6 | Body control module |
| 7 | Body control module |
| 8 | Body control module |
| 9 | Ignition switch |
| 10 | Safety diagnosis module |
| 11 | Data link connector |
| 12 | Climate control |
| 13 | Tailgate |
| 14 | Central gateway module |
| 15 | Lane departure warning, Interior mirror |
| 16 | Adaptive forward lighting |
| 17 | Column lock |
| 18 | Ultrasonic park assist module |
| 19 | Body control module, Regulated voltage control |
| 20 | Steering wheel |
| 21 | - |
| 22 | Cigarette lighter, DC accessory power outlet (front) |
| 23 | Cigarette lighter, DC accessory power outlet (rear center console) |
| 24 | Spare |
| 25 | Telematics service module |
| 26 | Heated steering wheel |
| 27 | Instrument panel cluster, Infotainment system, Auxiliary heater switch |
| 28 | Trailer socket |
| 29 | Display, Infotainment system |
| 30 | Transmission control module |
| 31 | Instrument panel cluster |
| 32 | Infotainment system |
| 33 | Trailer socket |
| 34 | Passive entry, Passive start module |
| S/B Fuses | |
| 01 | Power seat switch |
| 02 | Spare |
| 03 | Power windows front |
| 04 | Power windows rear |
| 05 | Logistic mode |
| 06 | Power seat switch |
| 07 | Spare |
| 08 | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Sunroof |
| 2 | Exterior mirror switch, Rain sensor, Power window DRV |
| 3 | - |
| 4 | - |
| 5 | Electrical brake control module |
| 6 | Intelligent battery sensor |
| 7 | Steering column lock |
| 8 | Transmission control module |
| 9 | - |
| 10 | Rear view camera, Interior rear view mirror, Headlight switch, Headlight |
| 11 | Rear window wiper |
| 12 | Heated rear window |
| 13 | Seat, lumbar support |
| 14 | Heated exterior mirrors |
| 15 | LPG module, Fuel system control module |
| 16 | Seat heating |
| 17 | Transmission control module R/C, Water pump, Auxiliary heater |
| 18 | Engine control module R/C |
| 19 | Fuel pump |
| 20 | - |
| 21 | Cooling fan |
| 22 | - |
| 23 | Ignition coil, Injectors |
| 24 | Washer pump |
| 25 | Headlamp actuator |
| 26 | Engine control sensors |
| 27 | - |
| 28 | Ignition |
| 29 | Ignition 1/2 |
| 30 | Exhaust system |
| 31 | Left-hand high beam |
| 32 | Right-hand high beam |
| 33 | Engine control module |
| 34 | Horn |
| 35 | Air conditioning system |
| 36 | Front fog lamp |
| J-cases Fuses | |
| 1 | Electrical brake control module |
| 2 | Front wiper |
| 3 | Power module |
| 4 | Power terminal of instrument panel fuse box |
| 5 | - |
| 6 | Fuel heater |
| 7 | Starter |
| 8 | Cooling fan |
| 9 | Cooling fan |
| 10 | Engine control module, Glow plug |
| 11 | Starter |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Amplifier |
| 2 | All-wheel drive |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | Spare |
| 7 | - |
| 8 | Spare |
| 9 | Spare |
| 10 | Spare |
| 11 | - |
| 12 | Spare |
| 13 | - |
| 14 | - |
| 15 | Spare |
| 16 | - |
| 17 | - |
| 18 | - |
| S/B Fuses | |
| 1 | DC/DC 400W transformer |
| 2 | DC/DC 400W transformer |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
