Suzuki Jimny 2017 Fuse Box Info

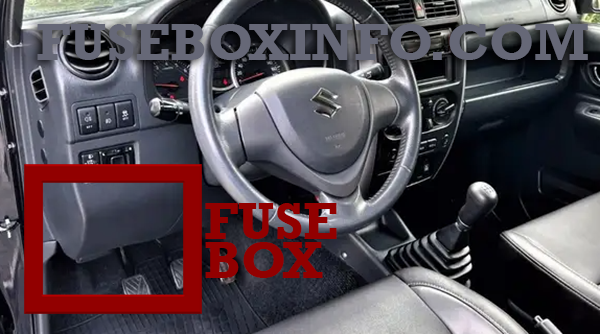

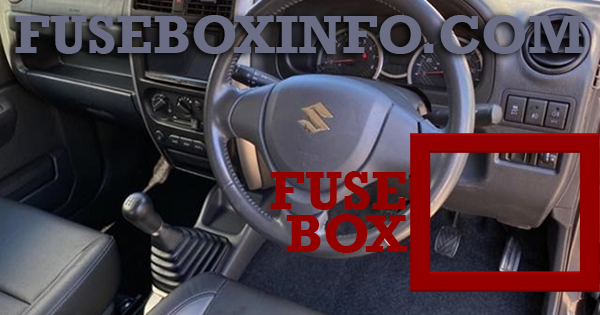

Passenger compartment fuse box location:
The interior fuse box is under the dashboard on the driver’s side.

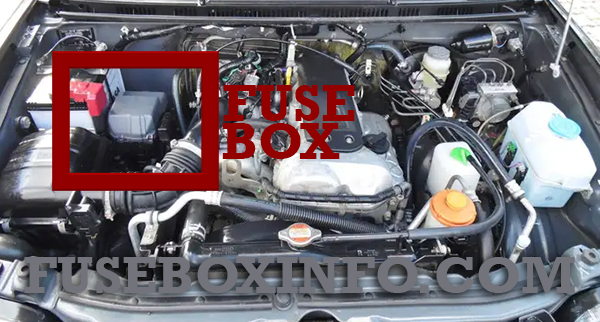

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | IG2 SIG |
| 2 | 20A | Rear defogger |
| 3 | 15A | Wiper / Washer |
| 4 | 15A | Seat heater |
| 5 | 15A | Accessory socket |
| 6 | - | Blank |
| 7 | 15A | Horn / Hazard |
| 8 | 15A | Radio / Dome light |
| 9 | 10A | RR fog lamp |
| 10 | 10A | IMMOBI / CONT (TPMS) |
| 11 | 10A | Starter |
| 12 | 30A | Power window |
| 13 | 15A | Ignition coil |
| 14 | 20A | 4WD |
| 15 | 10A | Back-up light |
| 16 | 15A | Air bag |
| 17 | 10A | Meter |
| 18 | 10A | ABS |
| 19 | 10A | Automatic transmission |
| 20 | 10A | Tail lamp |
| 21 | 15A | Stop light |
| 22 | 15A | D/L |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | A/C system |
| 2 | 30A | Starting motor |
| 3 | 20A | Blower fan |
| 4 | 15A | Front fog light |
| 5 | 50A | LAMP |
| 6 | 15A | Head light R |
| 7 | 15A | Head light L |
| 8 | - | Blank |
| 9 | - | Blank |
| 10 | 15A | EPI system |
| 11 | 30A | ABS solenoid fuse |
| 12 | 40A | IGN1 |
| 13 | 40A | ABS motor fuse |
| 14 | 50A | IGN2 |
