Suzuki Ignis 2021 Fuse Box Info

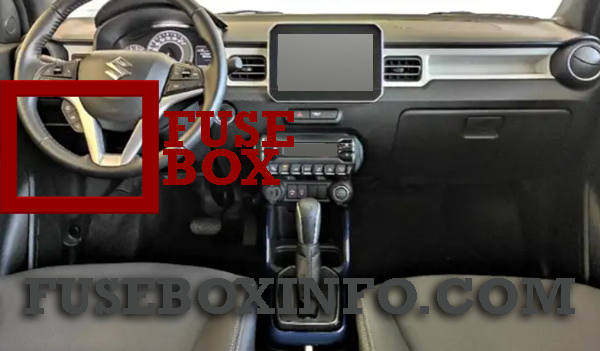

Passenger compartment fuse box location:
The interior fuse box is under the dashboard on the driver’s side.

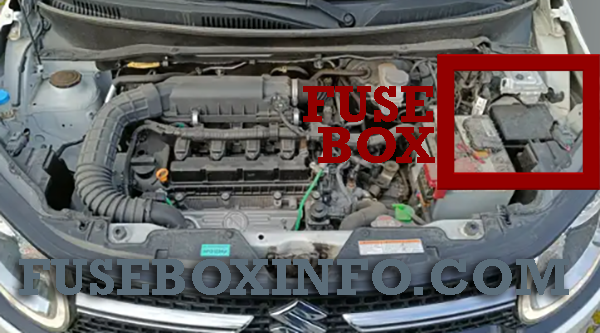

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window |
| 2 | 10A | Meter |
| 3 | 15A | Ignition coil |
| 4 | 5A | Ignition-1 signal 2 |
| 5 | 20A | Shift lever |
| 6 | - | Blank |
| 7 | - | Blank |
| 8 | 20A | Door lock |
| 9 | 10A | Steering lock |
| 10 | 10A | Hazard |
| 11 | 5A | A-STOP controller |
| 12 | 10A | Rear fog lamp |
| 13 | 5A | ABS/ESP® control module |
| 14 | 15A | Seat heater |
| 15 | 5A | Ignition-1 signal 3 |
| 16 | 10A | Dome light-2 |
| 17 | 5A | Dome light |
| 18 | 15A | Radio |
| 19 | 5A | CONT |
| 20 | 5A | Key 2 |
| 21 | 20A | Power window timer |
| 22 | 5A | Key |
| 23 | 15A | Horn |
| 24 | 5A | Tail light (Left) |
| 25 | 10A | Tail light |
| 26 | 10A | Air bag |
| 27 | 10A | Ignition-1 signal |
| 28 | 10A | Back-up light |
| 29 | 5A | ACC-3 |
| 30 | 20A | Rear defogger |
| 31 | 10A | Heated mirror |
| 32 | 15A | ACC-2 |
| 33 | 5A | ACC |
| 34 | 10A | Rear wiper |
| 35 | 5A | Ignition-2 signal |
| 36 | 15A | Washer |
| 37 | 25A | Front wiper |
| 38 | 10A | Stop light |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 120A | FL1 |
| 2 | 100A | FL2 |
| 3 | 80A | FL3 |
| 4 | 100A | FL4 |
| 5 | 50A | FL5 |
| 6 | 150A | FL6*1 |
| 7 | 40A | Power steering |
| 8 | - | Blank |
| 9 | 10A | A/C compressor |
| 10 | 25A | Headlight high*4 |
| 11 | 15A | Headlight (Left) |
| 12 | 15A | Headlight (Right) |
| 13 | 30A | Starter motor |
| 14 | 30A | Radiator fan |
| 15 | 30A | Starter motor 2*2 |
| 16 | 40A | Ignition switch 2 |
| 17 | - | Blank |
| 18 | 30A | T/M pump*3 |
| 19 | 30A | Back-up |
| 20 | - | Blank |
| 21 | 15A | Front fog light*5 |
| 22 | 30A | Sub battery*1 |
| 23 | 30A | Blower fan |
| 24 | - | Blank |
| 25 | 5A | Starting signal |
| 26 | - | Blank |
| 27 | 15A | Headlight high (Left)*4 |
| 28 | 15A | Headlight high (Right)*4 |
| 29 | 15A | T/M*2 |
| 30 | 15A | T/M pump 2*2 |
| 31 | 15A | FI |
| 32 | 40A | ABS motor |
| 33 | 25A | ABS solenoid |
| 34 | - | Blank |
| 35 | 10A | T/M 2*3 |
| 36 | 5A | T/M 3*3 |
| 37 | 40A | Ignition switch |
*1 Models with ENG A-STOP
*2 CVT models with ENG A-STOP
*3 Auto Gear Shift models
*4 Models with Auto-on headlight system
*5 Models with front fog light
