Suzuki Swift 2008 Fuse Box Info
Passenger compartment fuse box location:

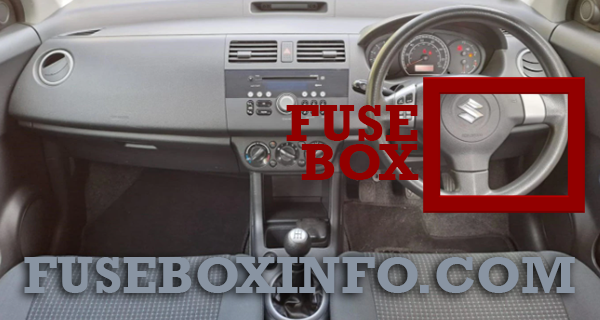

The interior fuse box is under the dashboard on the driver’s side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Blank |
| 2 | 15A | Ignition coil |
| 3 | 10A | Back-up light |
| 4 | 10A | Meter |
| 5 | 15A | Mirror |
| 6 | 15A | Accessory |
| 7 | 30A | Power window |
| 8 | 15A | Wiper / Washer |
| 9 | 10A | Power steering |
| 10 | 15A | Air bag |
| 11 | 10A | Anti-lock brake system |
| 12 | 10A | Tail light |
| 13 | - | Blank |
| 14 | 20A | Door lock |
| 15 | - | Blank |
| 16 | 10A | Starting motor |
| 17 | - | Blank |
| 18 | 10A | Heater |
| 19 | - | Blank |
| 20 | 15A | Radio / Dome |
| 21 | 20A | Rear defogger |
| 22 | 15A | Horn / Hazard |
| 23 | - | Blank |
| 24 | - | Blank |
Engine compartment fuse box (Main fuses on battery/Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 80A | All electric load |
| 2 | 50A | Power window, Ignition, Wiper, Starter |
| 3 | 50A | Tail light, Rear defogger, Door lock, Hazard/Horn, Dome |
| 4 | - | Radiator fan relay #1 |
| 5 | - | Radiator fan relay #2 |
| 6 | - | Radiator fan relay #3 |
| 7 | - | Starting motor relay |
| 8 | - | Main relay |
| 9 | - | Throttle motor relay |
| 10 | - | Front fog light relay |
| 11 | - | Fuel pump relay |
| 12 | - | Air compressor relay |
| 13 | - | Automatic transaxle relay |
| 14 | 30A | Heater fuse |
| 15 | 15A | Fuel injection fuse |
| 16 | 10A | Air compressor fuse |
| 17 | 15A | Automatic transaxle fuse |
| 18 | 15A | Brake light switch fuse |
| 19 | 30A | ABS control module fuse |
| 20 | 30A | Starting motor fuse |
| 21 | - | Blank |
| 22 | 50A | Power steering control module fuse |
| 23 | 30A | Ignition switch fuse |
| 24 | 30A | Radiator fan fuse |
| 25 | - | Blank |
| 26 | 30A | ABS control module fuse |
| 27 | - | Blank |
| 28 | - | Throttle motor fuse |
| 29 | 15A | Front fog light fuse |
| 30 | 15A | Headlight (Left) fuse |
| 31 | 15A | Headlight (Right) fuse |
| 32 | 80A | Heater, Air compressor, Power steering |
| 33 | 80A | Radiator fan, Front fog light, Head light |
