Toyota Yaris 2006 Fuse Box Info

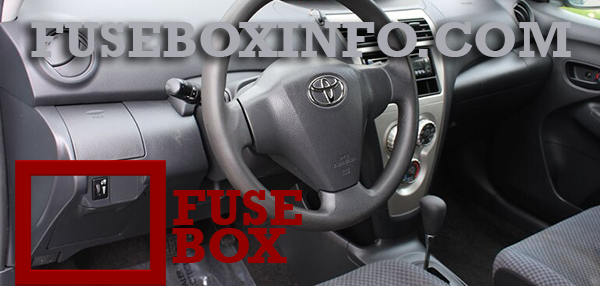

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side.

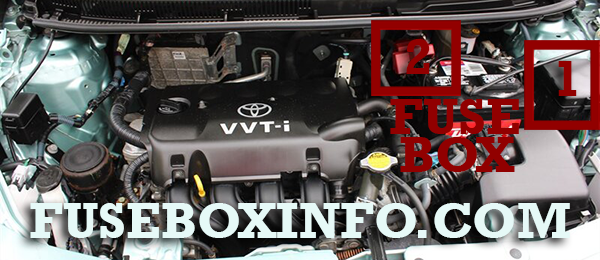

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 20. ACC2 | 7.5A | Shift lock system |
| 21. TAIL | 10A | Side marker lights, parking lights, tail lights, license plate lights, multiport fuel injection system/sequential multiport fuel injection system |
| 22. PANEL1 | 7.5A | Illuminations, instrument panel light control, meter and gauge |
| 23. A/C | 7.5A | Rear window defogger, air conditioning system |
| 24. D DOOR | 20A | No circuit |
| 25. RL DOOR | 20A | Rear passenger’s power window (left side) |
| 26. RR DOOR | 20A | Rear passenger’s power window (right side) |
| 27. CIG | 15A | Power outlet |
| 28. ACC | 7.5A | Door lock system, outside rear view mirrors, audio system |
| 29. ID/UP/MIR HTR | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 30. IGN | 7.5A | Multiport fuel injection system/sequential multiport fuel injection system, engine immobilizer system, SRS airbag system, front passenger occupant classification system |
| 31. MET | 7.5A | Meter and gauge |
| 32. WIP | 25A | Windshield wiper |
| 33. RR WIP | 15A | Rear wiper |
| 34. WSH | 15A | Windshield wiper and rear wiper |
| 35. ECU−IG | 10A | Daytime running light system, anti−lock brake system, electric power steering system, power windows, door lock system, theft deterrent system, electric cooling fan |
| 36. GAUGE | 10A | Charging system, turn signal lights, emergency flashers, buck−up lights, instrument panel light control, shift lock system, rear window defogger, air conditioning system, automatic transmission system |
| 37. OBD2 | 7.5A | On−board diagnosis system |
| 38. STOP | 10A | Stop lights, high mounted stop light, multiport fuel injection system/sequential multiport fuel injection system, shift lock system, anti−lock brake system |
| 39. D/L | 25A | Door lock system |
| 40. FR FOG | 15A | Front fog lights |
| 41. AM1 | 25A | Multiport fuel injection system/sequential multiport fuel injection system |
| 50. DEF | 30A | Rear window defogger |
| 51. PWR | 30A | Power windows |
Engine compartment fuse box (Fuse box 1):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. AM2 | 15A | Starting system, multiport fuel injection system/sequential multiport fuel injection system |
| 2. HORN | 10A | Horn |
| 3. EFI | 20A | Multiport fuel injection system/sequential multiport fuel injection system |
| 4. SPARE | 30A | Spare fuse |
| 5. SPARE | 15A | Spare fuse |
| 6. SPARE | 10A | Spare fuse |
| 7. FR DEF | 20A | No circuit |
| 8. ABS2/VSC2 | 30A | Anti−lock brake system |
| 9. H−LP MAIN | 30A | No circuit |
| 10. ST | 30A | Starting system |
| 11. S−LOCK | 20A | No circuit |
| 12. DOME | 15A | Interior light, personal lights, theft deterrent system, audio system, wireless remote control system |
| 13. ECU−B | 7.5A | Engine immobilizer system, daytime running light system, front passenger occupant classification system, power windows, door lock system, theft deterrent system, meter and gauge |
| 14. ALT−S | 7.5A | Charging system |
| 15. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system |
| 16. HAZ | 10A | Turn signal lights, emergency flashers |
| 17. H−LP RH/H−LP LO RH | 10A | Right− hand headlight |
| 18. H−LP LH/H−LP LO LH | 10A | Left− hand headlight |
| 19. EFI2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 42. HTR SUB2 | 40A | Air conditioning system |
| 43. EPS | 50A | Electric power steering system |
| 44. ABS1/VSC1 | 50A | Anti−lock brake system |
| 45. HTR | 40A | Air conditioning system |
| 46. RDI | 30A | Electric cooling fan |
| 47. HTR SUB1 | 30A | Air conditioning system |
| 48. H−LP CLN/PWR HTR | 30A | No circuit |
| 49. AMT | 50A | No circuit |
Engine compartment fuse box (Fuse box 2):
| Fuse/Relay N° and Name | Rating | Functions |
| 52. ALT | 120A | Charging system, “HTR SUB2”, “EPS”, “ABS1/VSC1”, “HTR”, “ABS2/VSC2”, “HTR SUB1”, “RDI”, “DEF”, “FR FOG”, “OBD2”, “D/L”, “STOP” and “AM1” fuses |
| 53. MAIN | 60A | “EFI”, “HORN”, “AM2”, “ALT−S”, “DOME”, “ST”, “ECU−B”, “ETCS”, “HAZ”, “H−LP LH/H−LP LO LH” and “H−LP RH/H−LP LO RH” fuses |
