Toyota GT86 2015 Fuse Box Info

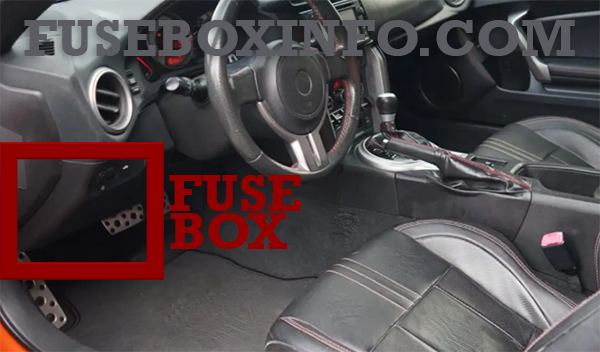

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the driver’s side.

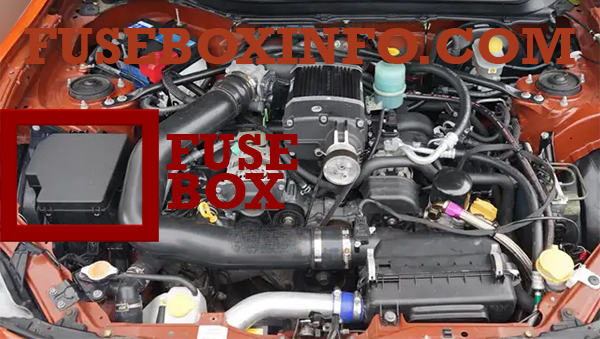

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. ECU ACC | 10A | Main body ECU, outside rear view mirrors |
| 2. P/POINT No.2 | 15A | Power outlet |
| 3. PANEL | 10A | Illumination |
| 4. TAIL | 10A | Tail lights |
| 5. DRL | 10A | Daytime running light system |
| 6. STOP | 7.5A | Stop lights |
| 7. OBD | 7.5A | On-board diagnosis system |
| 8. HEATER-S | 7.5A | Air conditioning system |
| 9. HEATER | 10A | Air conditioning system |
| 10. FR FOG LH | 10A | Left-hand front fog light |
| 11. FR FOG RH | 10A | Right-hand front fog light |
| 12. BK/UP LP | 7.5A | Back-up lights |
| 13. ECU IG1 | 10A | ABS, electric power steering |
| 14. AM1 | 7.5A | Starting system |
| 15. AMP | 15A | Audio system |
| 16. AT UNIT | 15A | Transmission |
| 17. GAUGE | 7.5A | Gauge and meters, smart entry & start system |
| 18. ECU IG2 | 10A | Engine control unit |
| 19. SEAT HTR LH | 10A | Left-hand seat heater |
| 20. SEAT HTR RH | 10A | Right-hand seat heater |
| 21. RADIO | 7.5A | Audio system |
| 22. P/POINT No.1 | 15A | Power outlet |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. MIR HTR | 7.5A | Outside rear view mirror defoggers |
| 2. RDI | 25A | Electric cooling fan |
| 3. (PUSH-AT) | 7.5A | Engine control unit |
| 4. ABS NO. 1 | 40A | ABS |
| 5. HEATER | 50A | Air conditioning system |
| 6. WASHER | 10A | Windshield washer |
| 7. WIPER | 30A | Windshield wipers |
| 8. RR DEF | 30A | Rear window defogger |
| 9. (RR FOG) | 10A | Rear fog light |
| 10. D FR DOOR | 25A | Power window (driver’s side) |
| 11. (CDS) | 25A | Electric cooling fan |
| 12. D-OP | 25A | - |
| 13. ABS NO. 2 | 25A | ABS |
| 14. D FL DOOR | 25A | Power window (passenger’s side) |
| 15. SPARE | - | Spare fuse |
| 16. SPARE | - | Spare fuse |
| 17. SPARE | - | Spare fuse |
| 18. SPARE | - | Spare fuse |
| 19. SPARE | - | Spare fuse |
| 20. SPARE | - | Spare fuse |
| 21. ST | 7.5A | Starting system |
| 22. ALT-S | 7.5A | Charging system |
| 23. (STR LOCK) | 7.5A | Steering lock system |
| 24. D/L | 20A | Power door lock |
| 25. ETCS | 15A | Engine control unit |
| 26. (AT+B) | 7.5A | Transmission |
| 27. (AM2 NO. 2) | 7.5A | Smart entry & start system |
| 28. EFI (CTRL) | 15A | Engine control unit |
| 29. EFI (HTR) | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 30. EFI (IGN) | 15A | Starting system |
| 31. EFI (+B) | 7.5A | Engine control unit |
| 32. HAZ | 15A | Turn signal lights, emergency flashers |
| 33. MPX-B | 7.5A | Automatic air conditioning system, gauge and meters |
| 34. F/PMP | 20A | Multiport fuel injection system/sequential multiport fuel injection system |
| 35. IG2 MAIN | 30A | SRS airbag system, engine control unit |
| 36. DCC | 30A | Interior light, wireless remote control, main body ECU |
| 37. HORN NO. 2 | 7.5A | Horn |
| 38. HORN NO. 1 | 7.5A | Horn |
| 39. H-LP LH LO | 15A | Left-hand headlight (low beam) |
| 40. H-LP RH LO | 15A | Right-hand headlight (low beam) |
| 41. H-LP LH HI | 10A | Left-hand headlight (high beam) |
| 42. H-LP RH HI | 10A | Right-hand headlight (high beam) |
| 43. INJ | 30A | Multiport fuel injection system/sequential multiport fuel injection system |
| 44. H-LP WASHER | 30A | Headlight cleaners |
| 45. AM2 NO. 1 | 40A | Starting system, engine control unit |
| 46. EPS | 80A | Electric power steering |
| 47. A/B MAIN | 15A | SRS airbag system |
| 48. ECU-B | 7.5A | Wireless remote control, main body ECU |
| 49. DOME | 20A | Interior light |
| 50. IG2 | 7.5A | Engine control unit |
