Holden Rodeo 2006 Fuse Box Info

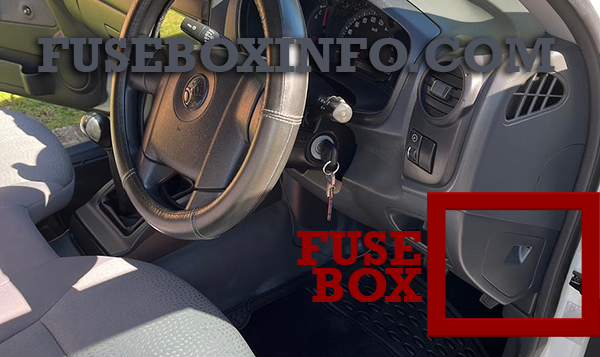

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

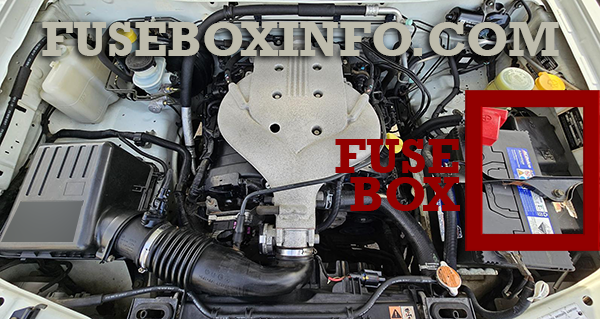

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse | ||
| 1 | - | - |
| 2 | 10A | ABS |
| 3 | - | - |
| 4 | 15A | Back Up |
| 5 | 15A | Meter |
| 6 | 10A | Turn |
| 7 | 15A | Elec. IG |
| 8 | 15A | Engine |
| 9 | 20A | Frt Wiper/Washer |
| 10 | 15A | Egr |
| 11 | 10A | Audio |
| 12 | 20A | Cigar/Acc Socket |
| 13 | 15A | Audio (+B) |
| 14 | 20A | Door Lock |
| 15 | 10A | Meter (+B) |
| 16 | 10A | Dome Light |
| 17 | 10A | Anti Theft |
| 18 | 15A | Stop |
| 19 | - | - |
| 20 | 10A | Starter |
| 21 | 10A | SRS |
| Slow blow fuse | ||
| 10 | 20A | RR Def |
| 11 | 30A | Power Window |
| Connector / Relay | ||
| B-7 | - | Rear defogger |
| B-8 | - | Power window |
| B-40 | - | - |
Engine compartment fuse box (C24SE engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | - | - |
| 3 | 15A | Frt Fog |
| 4 | 10A | ACG (S) |
| 5 | 10A | Illumi & Tail-RH |
| 6 | 10A | Tail |
| 7 | 10A | H/Light-RH |
| 8 | 10A | H/Light-LH |
| 9 | 20A | Fuel Pump |
| 10 | 10A | O2 Sensor |
| 11 | - | - |
| 12 | - | - |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | 100A | Main |
| 18 | - | - |
| 19 | - | - |
| 20 | 20A | Cond, Fan |
| 21 | 40A | IG 1 |
| 22 | - | - |
| 23 | - | - |
| 24 | 30A | Blower |
| 25 | 50A | IG 2 |
| Relays | ||
| X-1 | - | Tail light |
| X-2 | - | Fuel pump |
| X-3 | - | Horn |
| X-4 | - | Dimmer |
| X-5 | - | - |
| X-6 | - | Starter |
| X-7 | - | H/light |
| X-8 | - | - |
| X-9 | - | FRT Fog light |
| X-10 | - | Cond fan |
| X-11 | - | Heater |
| X-12 | - | - |
| X-13 | - | Starter cut |
| X-14 | - | A/C Comp |
| X-15 | - | Thermo |
Engine compartment fuse box (HFV6 engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | 15A | O 2 Heat Pre |
| 3 | 10A | ECM Batt |
| 4 | 10A | TCM/PIM Batt |
| 5 | 10A | Illumi & Tail-RH |
| 6 | 10A | Tail-LH |
| 7 | 10A | H/Light-RH |
| 8 | 10A | H/Light-LH |
| 9 | 20A | Trailer |
| 10 | 15A | O2 Heat Post |
| 11 | 15A | Coil-RH |
| 12 | 15A | Coil-LH |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | - | - |
| 18 | 20A | Frt Fog |
| 19 | 60A | RAD, Fan |
| 20 | 20A | Fuel Pump |
| 21 | 40A | IG 1 |
| 22 | 40A | IG 1 |
| 23 | 40A | ABS-2 |
| 24 | 30A | Blower |
| 25 | 50A | IG 2 |
| Relays | ||
| X-1 | - | Tail light |
| X-2 | - | Fuel pump |
| X-3 | - | Horn |
| X-4 | - | Dimmer |
| X-5 | - | - |
| X-6 | - | - |
| X-7 | - | - |
| X-8 | - | - |
| X-9 | - | - |
| X-10 | - | FRT Fog light |
| X-11 | - | Heater |
| X-12 | - | ECM Main |
| X-13 | - | Starter |
| X-14 | - | A/C Comp |
| X-15 | - | H/light |
Engine compartment fuse box (4JH1-TC engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | 10A | RR Fog |
| 3 | 15A | Frt Fog |
| 4 | - | - |
| 5 | 10A | Illumi & Tail-RH |
| 6 | 10A | Tail-LH |
| 7 | 10A | H/Light-RH (LO) |
| 8 | 10A | H/Light-LH (LO) |
| 9 | 10A | Trailer |
| 10 | 10A | ACG (S) |
| 11 | - | - |
| 12 | - | - |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | 80A | Main |
| 18 | 20A | Cond, Fan |
| 19 | 60A | Glow |
| 20 | 30A | ECM |
| 21 | 40A | IG 1 |
| 22 | 40A | IG 1 |
| 23 | 40A | ABS-2 |
| 24 | 30A | Blower |
| 25 | 50A | IG 2 |
| Relays | ||
| X-1 | - | Tail light |
| X-2 | - | FRT Fog light |
| X-3 | - | Horn |
| X-4 | - | Dimmer |
| X-5 | - | Glow |
| X-6 | - | Starter cut |
| X-7 | - | H/light |
| X-8 | - | Starter |
| X-9 | - | Cond fan |
| X-10 | - | - |
| X-11 | - | Heater |
| X-12 | - | - |
| X-13 | - | ECM Main |
| X-14 | - | A/C Comp |
| X-15 | - | Thermo |
