Mercury Villager 2002 Fuse Box Info

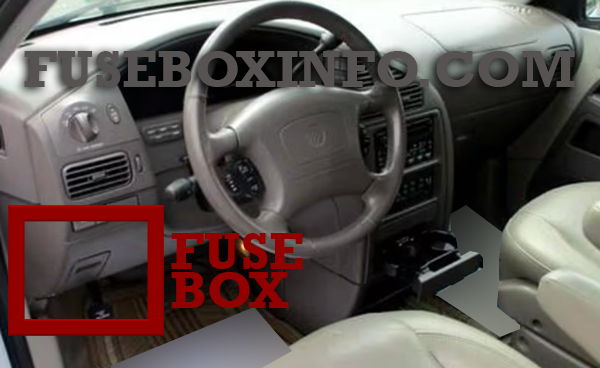

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

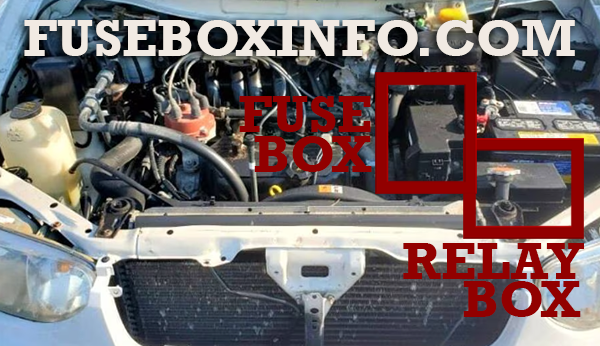

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Rating | Functions |
| Corner Lamps | 10A | Front Exterior Lamps |
| Heated Seat | 7.5A | Heated Seats (not available) |
| I/P Illum | 7.5A | Interior Panel Illumination Lamps |
| Electron | 10A | Transaxle Control Module (TCM), Electronic Automatic Temperature Control (EATC) Module, Instrument Cluster, Rear Wiper Motor Assembly |
| Tail Lamp | 10A | Rear Exterior Lamps |
| Air Bag | 10A | Airbag Diagnostic Monitor |
| Audio | 10A | Radio, Rear Radio Control, CD Changer |
| Eng Cont | 10A | Powertrain Control Module, Oxygen Sensors |
| Room Lamp | 15A | Interior Lamps |
| Mirror | 7.5A | Smart Entry Control (SEC), Power Mirror Switch |
| Stop Lamp | 20A | Brake Pedal Position (BPP) Switch, Trailer Tow Control Unit |
| Cigar Lighter | 20A | Cigar Lighter |
| Hazard | 10A | Hazard Warning Flasher Switch, Anti-Theft Indicator |
| RR Pwr Plug | 20A | Rear Powerpoint |
| Rear Blower | 15A | Rear Blower Motor Relay, Rear Blower Motor |
| Front Wiper | 20A | Front Wiper/Washer Assembly |
| Rear Blower | 15A | Rear Blower Motor Relay, Rear Blower Motor |
| Rear Wiper | 10A | Rear Wiper/Washer Assembly |
| O2 Sensor | 7.5A | Oxygen Sensor |
| Audio/Video | 7.5A | Radio/Video System |
| Turn | 10A | Hazard Warning Flasher Switch |
| Audio Amp | 20A | Subwoofer Amplifier |
| Front Blower | 20A | Front Blower Motor, Front Blower Motor/Speed Controller |
| Eng Cont | 7.5A | Powertrain Control Module, Lighting Control Module |
| Relays | 10A | Speed Control, Instrument Cluster, Rear Blower Motor, Data Link Connector #2, Cooling Fans |
| A/C Cont | 7.5A | Electronic Automatic Temperature Control (EATC) Module, A/C Relay, Front Climate Control Panel |
| Electron | 10A | Transmission Control, Lighting Control Module, ABS Control Module, Smart Entry Control (SEC)/Timer Module |
| Rear Defog | 20A | Rear Window Defrost |
| Front Blower | 20A | Front Blower Motor, Front Blower Motor/Speed Controller |
| Rear Defog | 20A | Rear Window Defrost |
| - | - | Not Used |
| Heated Mirror | 10A | Rear Window Defrost Switch, Power/Heated Mirrors |
Engine compartment fuse box:
| Fuse/Relay | Rating | Functions |
| Fog Lamp | 7.5A | Fog Lamps |
| FUEL PUMP | 15A | Fuel Pump Relay |
| INJ | 10A | Powertrain Control Module (PCM), Injectors |
| SEC | 7.5A | Anti-Theft Relay, Smart Entry Control (SEC)/Timer Module |
| RAD | 7.5A | Radiator Fan Sensing |
| ECCS | 10A | Data Link Connector (DLC) #1, PCM Power Relay |
| - | - | Not Used |
| - | - | Not Used |
| ALT | 10A | Generator |
| ABS | 20A | ABS Control Module |
| - | - | Not Used |
| H/L RH | 15A | Lighting Control Module |
| HORN | 15A | Horn Relay |
| - | - | Not Used |
| H/L LH | 15A | Lighting Control Module |
| - | - | Not Used |
| - | - | Not Used |
| ABS | 40A | ABS Control Module |
| - | - | Not Used |
| PWR WND | 30A | Power Window Relay, Smart Entry Control (SEC)/Timer Module, Power Seats |
| RAD FAN LO | 20A | Low Speed Fan Control Relay |
| - | - | Not Used |
| IGN SW | 30A | Ignition Switch |
| - | - | Not Used |
| RAD FAN | 75A | High Speed Fan Control Relay |
| FR BLW | 65A | Front Blower Motor Relays |
| RR DEF | 45A | Rear Window Defroster Relay |
| ALT | 140A | Accessory Relay, Ignition Relay, Tail Lamp Relay, Fuse Junction Panel |
| MAIN | 100A | Generator |
Engine compartment relay box:
| Relay N° | Rating | Functions |
| 1 | - | Start Inhibit Relay |
| 2 | - | Fuel Pump Relay |
| 3 | - | Bulb Check Relay |
| 4 | - | Fog Lamp |
| 5 | - | Anti-theft Relay |
| 6 | - | Horn Relay |
| 7 | - | A/C Relay |
