GAC Empow 2023 Fuse Box Info

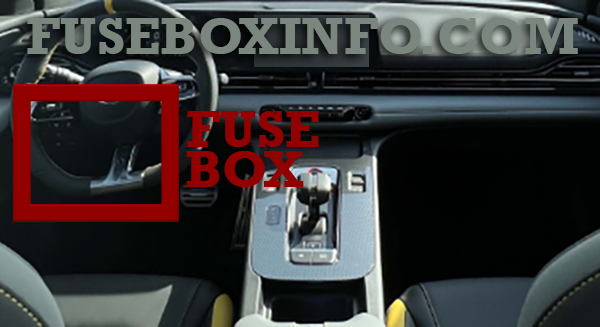

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, under the cover.

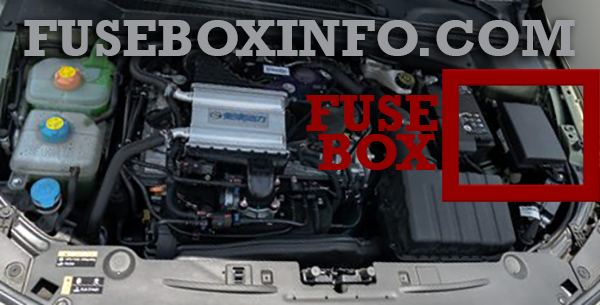

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF01 | 20A | Front 12V power outlet |
| IF02 | 7.5A | BCM |
| IF03 | 7.5A | ACU/DSM ECU * |
| IF04 | 7.5A | USB charging port */Mobile phone WCM */DVR USB port * |
| IF05 | - | - |
| IF06 | - | - |
| IF07 | - | - |
| IF08 | 7.5A | T-BOX ECU* |
| IF09 | 7.5A | HVAC control unit/Mobile phone WCM*/RF receiver module/RLS*/Smart Bluetooth module* |
| IF10 | 10A | AV display (10.25-inch)/HCP/IAL* |
| IF11 | 7.5A | OBU/GSM/SVM ECU*/Left rear BSD ECU*/Right rear BSD ECU*/DSM ECU* |
| IF12 | - | - |
| IF13 | 7.5A | Electronic anti-dazzling interior rearview mirror*/ defogger relay (ER07) |
| IF14 | 7.5A | BCM |
| IF15 | - | - |
| IF16 | - | - |
| IF17 | 10A | SRS ECU |
| IF18 | 7.5A | ECM/7WDCT TCU/Electronic P gear actuator |
| IF19 | 7.5A | GWM/BCM |
| IF20 | - | - |
| IF21 | 7.5A | Brake switch/ESPI |
| IF22 | 7.5A | EPS ECU/GSM |
| IF23 | 7.5A | On-board ETC unit/Power sunroof ECU*/Left front seat connector A (HVSM power supply)*/HCP/HVAC control unit |
| IF24 | - | - |
| IF25 | 7.5A | Plasma generator*/ALS switch/front combination lamp (ALS motor power supply) |
| IF26 | 7.5A | LDW */MRR module */instrument cluster */ACU/T-BOX control unit */RPA ECU/AVM ECU * |
| IF27 | - | - |
| IF28 | - | - |
| IF29 | - | - |
| IF30 | - | - |
| IF31 | 20A | BCM (door lock power supply) |
| IF32 | 20A | BCM |
| IF33 | 20A | BCM (wiper power supply) |
| IF34 | - | - |
| IF35 | 7.5A | GWM |
| IF36 | 15A | BCM (turn signal lamp power supply) |
| IF37 | - | - |
| IF38 | - | - |
| IF39 | 7.5A | Instrument cluster*/instrument cluster display (10.25-inch) |
| IF40 | 7.5A | Fuel filler cap lock motor/fuel filler cap lock relay (IR05) |
| IF41 | 7.5A | OBD DLC |
| IF42 | - | - |
| IF43 | Dark current switch |
T-BOX ECU */HVAC control unit/mobile phone WCM */RF receiver module/RLS */smart Bluetooth module */AV system display (10.25-inch)/HCP/IAL */on-board ETC unit/GSM/AVM ECU */left rear BSD ECU */right rear BSD ECU */driver status monitoring ECU * |
| IF44 | - | - |
| IF45 | 30A | Right front door control module |
| IF46 | 30A | Left front door control module |
| IF47 | 20A | BCM (main lighting power supply 2) |
| IF48 | 20A | BCM (main lighting power supply 1) |
| IF49 | 10A | Left front seat connector A (HVSM power supply) * |
| IF50 | 15A | IG2 power supply |
| IF51 | 20A | Left front seat connector A (seat controller power supply) * |
| IF52 | 20A | Right front seat connector A (seat adjusting switch power supply) * |
| IF53 | 15A | BCM (windshield washer motor power supply) |
| IF54 | 20A | ACU |
| IF55 | 20A | Power sunroof ECU* |
| IF56 | - | - |
| IF57 | - | - |
| IF58 | - | - |
| IR01 | - | ACC relay |
| IR02 | - | - |
| IR03 | - | - |
| IR04 | - | IG1 relay |
| IR05 | - | Fuel filler cap lock relay |
| IR06 | - | - |
| IR07 | - | IG2 relay |
* if equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF01 | - | - |
| EF02 | - | - |
| EF03 | - | - |
| EF04 | 7.5A | ECM |
| EF05 | - | - |
| EF06 | - | - |
| EF07 | 15A | Exterior rearview mirror heater |
| EF08 | - | - |
| EF09 | - | - |
| EF10 | 30A | 7WDCT TCU |
| EF11 | 30A | 7WDCT TCU |
| EF12 | 15A | Horn relay (ER03)/horn |
| EF13 | 30A | 7WDCT TCU |
| EF14 | 7.5A | MRR module */LDW ECU * |
| EF15 | - | - |
| EF16 | 20A | Fuel pump |
| EF17 | 20A | Wiper/wiper speed control relay (ER11)/wiper relay (ER12) |
| EF18 | 7.5A | Brake switch |
| EF19 | 7.5A | Main relay (ER17)/ECM |
| EF20 | - | - |
| EF21 | - | - |
| EF22 | 60A | To instrument panel PDU |
| EF23 | 40A | ESPI |
| EF24 | 30A | IG1 On |
| EF25 | 30A | Starter |
| EF26 | 40A | ACC power supply |
| EF27 | 40A | Blower |
| EF28 | 40A | Rear windshield defogger heater +/exterior rearview mirror heater* |
| EF29 | - | - |
| EF30 | 50A | Cooling fan (low gear) |
| EF31 | - | - |
| EF32 | 60A | To instrument panel PDU |
| EF33 | 60A | Cooling fan (high gear) |
| EF34 | - | - |
| EF35 | 10A | Low speed fan relay (ER06)/high speed fan relay (ER09)/ Fuel pump relay (ER14)/water pump relay (ER02) |
| EF36 | 15A | Ignition coil 1/ignition coil 2/ignition coil 3/ignition coil 4 |
| EF37 | 15A | ECM/Starter relay 1(ER15)/Starter relay 2(ER16) |
| EF38 | 10A | Upstream oxygen sensor/Downstream oxygen sensor/Compressor relay (ER04) |
| EF39 | 10A | PCV heater relay (ER10)/PCV heater/Canister vent valve/ Relief valve/Canister solenoid valve/Oil pump solenoid valve/Oil control valve (intake end)/Oil control valve (exhaust end) |
| EF40 | 10A | Left EAV valve */Right EAV valve * |
| EF41 | - | - |
| EF42 | - | - |
| EF43 | 10A | Electric water pump |
| EF44 | - | - |
| EF45 | 7.5A | A/C compressor |
| EF46 | 20A | Left front seat connector A (HVSM and seat controller power supply) * |
| EF47 | - | - |
| EF48 | 40A | ESPI |
| EF49 | 30A | Electronic P gear actuator |
| EF50 | - | - |
| ER01 | - | - |
| ER02 | - | Water pump relay |
| ER03 | - | Horn relay |
| ER04 | - | Compressor relay |
| ER05 | - | Blower relay |
| ER06 | - | Low speed fan relay |
| ER07 | - | Defogger relay |
| ER08 | - | - |
| ER09 | - | High speed fan relay |
| ER10 | - | PCV heater relay |
| ER11 | - | Wiper speed control relay |
| ER12 | - | Wiper relay |
| ER13 | - | - |
| ER14 | - | Fuel pump relay |
| ER15 | - | Starter relay 1 |
| ER16 | - | Starter relay 2 |
| ER17 | - | Main relay |
* if equipped
Engine compartment fuse box (On battery):
| Fuse/Relay N° | Rating | Functions |
| PF01 | 300A | Starter/Engine compartment PDU/Alternator |
| PF02 | 7.5A | EBS |
| PF03 | 80A | EPS ECU |
