GAC M8 2024 Fuse Box Info

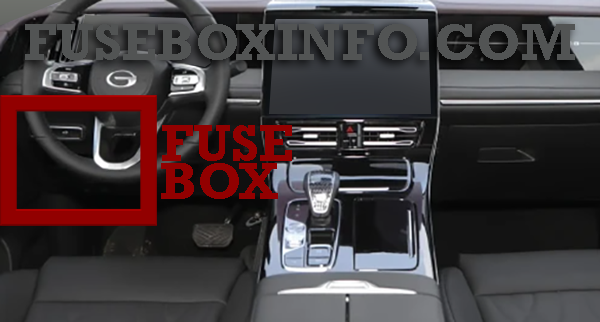

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, behind the storage compartment.

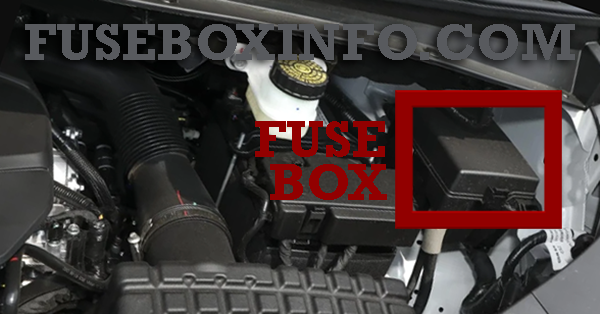

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF01 | 20A | Trunk 12V auxiliary power supply |
| IF02 | 7.5A | ICBM/GWM*/GWM-ETH* |
| IF03 | 10A | ACU*/WCM*/third-row right USB charging port*/second-row left seat connector (USB_ACC power supply)/streaming interior rearview mirror*/third-row left USB charging port |
| IF04 | 25A | Rear 12V power outlet*/rear USB port* |
| IF05 | 20A | 2nd-row right seat connector (USB_ACC power supply)*/rear USB port (TYPE C)* |
| IF06 | - | - |
| IF07 | - | - |
| IF08 | 20A | ACU* |
| IF09 | 20A | Left front seat connector ( HVSM power supply)* |
| IF10 | 10A | WCM*/HVAC control unit/GWM*/GWM-ETH*/left front seat connector (HVSM/front seat control unit power supply)*/RCP/RLS |
| IF11 | 7.5A | GWM*/T-BOX ECU*/GWM-ETH* |
| IF12 | 10A | CDC electronically controlled suspension ECU* |
| IF13 | 7.5A | Electronic dimming interior rearview mirror*/defogger relay (ER07)/IBCM/rear blower relay (ER08) |
| IF14 | - | - |
| IF15 | 10A | 2nd-row left seat connector (2nd-row seat control unit massage power supply)*/2nd-row right seat connector (2nd-row seat control unit massage power supply)* |
| IF16 | - | - |
| IF17 | 10A | SRS ECU-H*/SRS ECU-L* |
| IF18 | 7.5A | ECM/8AT TCU |
| IF19 | 7.5A | IBCM/T-BOX ECU*/IC*/GWM*/GWM-ETH* |
| IF20 | 7.5A | Brake switch |
| IF21 | 7.5A | ESPI |
| IF22 | 10A | EPS ECU/gearshift actuator control module/HVAC control unit/CDC electronically controlled suspension ECU*/EPB ECU*/cup holder switch*/GSM |
| IF23 | 7.5A | 2nd-row right seat connector/right sliding door control unit/2nd-row left seat connector/left front seat connector/RCP/power sunroof ECU/left sliding door control unit/power sunshade |
| IF24 | - | - |
| IF25 | 7.5A | Left rear combination lamp B/right rear combination lamp A/left rear combination lamp A/right front combination lamp/left front combination lamp |
| IF26 | 7.5A | FAPA ECU*/RPA ECU*/ACU*/clock spring |
| IF27 | - | - |
| IF28 | 15A | Clock spring (steering wheel heating)* |
| IF29 | - | - |
| IF30 | 20A | Left rear window regulator motor (with four-window express-up & down) |
| IF31 | 20A | IBCM (door lock power supply) |
| IF32 | 20A | IBCM (main power supply |
| IF33 | 20A | IBCM (door lock and rear wiper power supply) |
| IF34 | 30A | ACU |
| IF35 | 7.5A | GWM*/GWM-ETH* |
| IF36 | 15A | IBCM (turn signal lamp power supply)/left rear combination lamp B/left rear combination lamp A/right rear combination lamp A |
| IF37 | 15A | 8AT TCU/GSM |
| IF38 | 20A | Right rear window regulator motor (with four-window express-up & down) |
| IF39 | 7.5A | IC |
| IF40 | 25A | IBCM (main lighting power supply 1)/left front combination lamp/right front combination lamp |
| IF41 | 15A | OBD DLC 2/OBD DLC/cup holder switch* |
| IF42 | 25A | IBCM (main lighting power supply 2)/left front combination lamp/right front combination lamp |
| IF43 | Dark current switch |
ACU/WCM*/HVAC control unit/GWM/GWM-ETH/left front seat connector (HVSM/front seat control unit power supply)*/RCP/RLS/T-BOX ECU*/CDC electronically controlled suspension ECU* |
| IF44 | 30A | PLG* |
| IF45 | 30A | Right front door control module |
| IF46 | 30A | Left front door control module |
| IF47 | - | - |
| IF48 | 10A | FAPA ECU*/left rear main BSD sensor*/right rear main BSD sensor |
| IF49 | 30A | Right sliding door control unit* |
| IF50 | 30A | 2nd-row left seat connector (2nd-row seat control unit heater power supply)* |
| IF51 | 20A | Left front seat connector (motor power supply)* |
| IF52 | 30A | Right front seat connector (motor power supply)/2nd-row left seat connector (2nd-row seat control unit massage power supply)/2nd-row right seat connector (2nd-row seat control unit massage power supply) |
| IF53 | 15A | IBCM (windshield washer motor power supply) |
| IF54 | 30A | Left sliding door control unit |
| IF55 | 20A | Power sunroof ECU |
| IF56 | 20A | Power sunshade* |
| IF57 | 10A | Clock spring/touch screen/left sliding door control unit/right sliding door control unit/left front seat connector (seat control unit) |
| IF58 | 7.5A | PM2.5 sensor/PLG*/RF receiver module/fragrance module* |
| IR01 | - | ACC relay |
| IR02 | - | Lock-up relay 1 |
| IR03 | - | Lock-up relay 2 |
| IR04 | - | IG1 relay |
| IR05 | - | - |
| IR06 | - | - |
| IR07 | - | IG2 relay |
* if equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF01 | - | - |
| EF02 | - | - |
| EF03 | - | - |
| EF04 | 7.5A | ECM |
| EF05 | - | - |
| EF06 | - | - |
| EF07 | 7.5A | Exterior rearview mirror heater* |
| EF08 | 15A | Left front tweeter/right front woofer |
| EF09 | - | - |
| EF10 | - | - |
| EF11 | - | - |
| EF12 | 7.5A | A/C compressor |
| EF13 | - | - |
| EF14 | - | - |
| EF15 | 25A | Gearshift actuator control module* |
| EF16 | 20A | Fuel pump |
| EF17 | 20A | Front wiper motor/wiper speed control relay (ER11)/wiper relay (ER12) |
| EF18 | 10A | Brake switch/horn relay (ER13) |
| EF19 | 7.5A | Main relay (ER17)/ECM/front blower relay (ER05) |
| EF20 | 25A | Gearshift actuator control module* |
| EF21 | - | - |
| EF22 | 60A | To instrument panel PDU |
| EF23 | 30/40A | ESPI |
| EF24 | 50A | 2nd-row left seat connector (seat control unit power supply) |
| EF25 | 30A | Starter excitation coil |
| EF26 | 40A | ACC power supply |
| EF27 | 40A | Connector to HVAC assembly |
| EF28 | 40A | Rear windshield defogger heater* |
| EF29 | - | - |
| EF30 | 50A | Power amplifier module* |
| EF31 | 50A | ACU*/WCM*/HVAC control unit/GWM*/GWMETH*/left front seat connector (HVSM/front seat control unit power supply)*/RCP/RLS*/T-BOX ECU/CDC electronically controlled suspension ECU* |
| EF32 | 60A | Connector to instrument panel PDU |
| EF33 | - | - |
| EF34 | - | - |
| EF35 | 10A | Cooling fan control module/fuel pump relay (ER14) |
| EF36 | 15A | Ignition coil 1/ignition coil 2/ignition coil 3/ignition coil 4 |
| EF37 | 15A | ECM (main relay power supply) |
| EF38 | 10A | Upstream oxygen sensor/downstream oxygen sensor/compressor relay (ER04)/starter relay 1 (ER15)/starter relay 2 (ER16) |
| EF39 | 10A | PCV heater relay (ER03)/PCV heater/electronic intake air recirculation valve/canister solenoid valve/oil control valve (intake)/oil control valve (exhaust)/electronic thermostat/canister vent valve |
| EF40 | - | - |
| EF41 | 7.5A | LDW ECU*/MRR module* |
| EF42 | 25A | 2nd-row right seat connector (motor power supply) |
| EF43 | - | - |
| EF44 | 30A | 2nd-row left seat connector (motor power supply) |
| EF45 | - | - |
| EF46 | - | - |
| EF47 | 30A | IG1 power supply/IG2 power supply |
| EF48 | 30/40A | ESPI |
| EF49 | 50A | 2nd-row right seat connector (2nd-row seat control unit power supply) |
| EF50 | 40A | Rear blower |
| ER01 | - | - |
| ER02 | - | - |
| ER03 | - | PCV heater relay |
| ER04 | - | Compressor relay |
| ER05 | - | Blower relay |
| ER06 | - | - |
| ER07 | - | Defogger relay |
| ER08 | - | Rear blower relay |
| ER09 | - | - |
| ER10 | - | - |
| ER11 | - | Wiper speed control relay |
| ER12 | - | Wiper relay |
| ER13 | - | Horn relay |
| ER14 | - | Fuel pump relay |
| ER15 | - | Starter relay 1 |
| ER16 | - | Starter relay 2 |
| ER17 | - | Main relay |
* if equipped
