GAC GA4 2024 Fuse Box Info

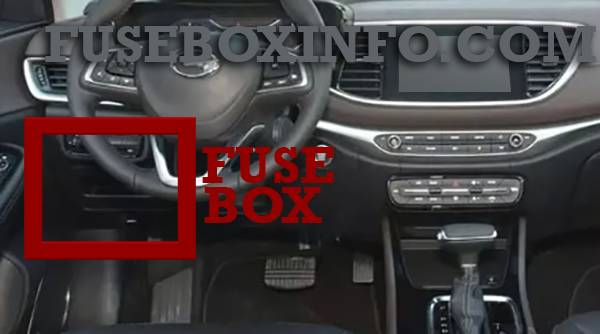

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel, behind the storage shelf.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF1 | SHORT PIN | Short pin |
| IF2 | 20A | Body control module (light power supply) |
| IF3 | 7.5A | Gateway control unit |
| IF4 | 10A | Body control module (turn signal power supply) |
| IF5 | 15A | AUDIO Control Unit |
| IF6 | 15A | Sunroof Control Unit |
| IF7 | 7.5A | Trunk light / front left courtesy light / front right courtesy light / rear-view mirror folding relay / rear-view mirror unfolding relay |
| IF8 | 15A | Body Control Module |
| IF9 | - | - |
| IF10 | - | - |
| IF11 | - | - |
| IF12 | 20A | Body control module (front left window regulator power, rear left window regulator power) |
| IF13 | 20A | Body control module (front right window regulator power, rear right window regulator power) |
| IF14 | 30A | IG1 relay/ACC relay/Ignition switch |
| IF15 | 20A | Front left seat connector (seat adjustment power) |
| IF16 | 7.5A | OBD Diagnostic Interface |
| IF17 | - | - |
| IF18 | 10A | Instrument cluster / T-BOX control unit / panorama parking control unit |
| IF19 | 15A | Body control module (wiper cleaning power) |
| IF20 | 20A | Front left seat connector (seat heating power) |
| IF21 | - | - |
| IF22 | 20A | Body control module (door lock power supply) |
| IF23 | - | - |
| IF24 | 20A | Cigarette Lighter |
| IF25 | 7.5A | Body control module / PEPS control unit |
| IF26 | 10A | AUDIO control unit / rear-view mirror adjustment switch |
| IF27 | 7.5A | Smartphone wireless charging module / USB charging port |
| IF28 | - | - |
| IF29 | 7.5A | Blower relay / electronic anti-glare rear-view mirror / PEPS control unit / defogging relay |
| IF30 | 7.5A | Gateway control unit / body control module / PEPS control unit |
| IF31 | 10A | Sunroof control unit / rain and light sensor / front central console panel / T-BOX control unit / instrument cluster / A/C control unit / front left seat connector / left dashboard switch group |
| IF32 | 7.5A | Steering angular speed sensor / EPB control unit / TPMS control unit / EPS control unit / ABS/ESP control unit |
| IF33 | 7.5A | Front left combination light (adjustment motor) / front right combination light (adjustment motor) / reversing radar control unit / panorama parking control unit / headlight height adjustment switch / anion generator / A/C control panel |
| IF34 | 10A | Supplemental Restraint System Control Unit |
| IF35 | 7.5A | Shift lever / 4AT control unit / 6AT control unit / brake switch / engine control unit |
| IF36 | 7.5A | High brake light / TPMS control unit / EPB switch |
| IF37 | 7.5A | PEPS control unit / ESCL |
| IF38 | 7.5A | Ignition switch / PEPS control unit / PEPS immobilizer coil |
| IF39 | 10A | Front central console panel / A/C control unit / A/C control panel |
| IF40 | 7.5A | Body control module / starter relay 1 / starter relay 2 / engine control unit |
| IF41 | - | - |
| IF42 | - | - |
| IF43 | 7.5A | Left rear-view mirror heater/right rear-view mirror heater |
| IF44 | 30A | Rear Defogging Heater |
| IR1 | - | IG2 Relay |
| IR2 | - | ACC Relay |
| IR3 | - | IG1 relay |
| IR4 | - | - |
| IR5 | - | Defogging relay |
| IR6 | - | Exterior rear-view folding relay |
| IR7 | - | Exterior rear-view mirror unfolding relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| EF1 | 125A | Main fuse |
| EF2 | 80A | EPS control unit |
| EF3 | 50A | Instrument Panel Fuse Box |
| EF4 | 40A | High-speed fan relay / low-speed fan relay |
| EF5 | 50A | High-speed fan relay |
| EF6 | 40A | ABS/ESP control unit |
| EF7 | - | - |
| EF8 | 30A | Blower Relay |
| EF9 | - | - |
| EF10 | 50A | Instrument Panel Fuse Box |
| EF11 | - | - |
| EF12 | 30A | Starter relay 1 / Starter relay 2 / IG2 relay / Ignition switch |
| EF13 | 20A | Wiper relay/wiper speed regulation relay |
| EF14 | - | - |
| EF15 | 25A | ABS/ESP control unit |
| EF16 | 15A | High Beam Relay |
| EF17 | 7.5A | A/C compressor relay |
| EF18 | - | - |
| EF19 | - | - |
| EF20 | 15A | Fuel Pump Relay |
| EF21 | 30A | Electronic Parking Brake Control Unit |
| EF22 | 7.5A | Engine control unit/brake switch |
| EF23 | 15A | Speaker Relay |
| EF24 | 30A | Electronic Parking Brake Control Unit |
| EF25 | - | - |
| EF26 | - | - |
| EF27 | 15A | 4AT control unit / 6AT control unit |
| EF28 | SHORT PIN | Short pin |
| EF29 | SHORT PIN | Short pin |
| EF30 | 10A | Fuel injector and fuel pump relay |
| EF31 | 15A | Ignition Coil |
| EF32 | 10A | Engine Control Unit |
| EF33 | 7.5A | Low-speed fan relay / high-speed fan relay / starter relay 2 / A/C compressor relay / front oxygen sensor / rear oxygen sensor |
| EF34 | 10A | Front left combination light (low beam) |
| EF35 | 10A | Front right combination light (low beam) |
| EF36 | 7.5A | Engine Control Unit |
| EF37 | 10A | Clutch position sensor (MT model) / variable camshaft timing (intake end) / carbon canister solenoid valve / turbocharger wastegate (1.3T model) / discharge valve (1.3T model) / variable camshaft timing (exhaust end) |
| ER1 | - | Wiper Relay |
| ER2 | - | Wiper speed regulation relay |
| ER3 | - | Fuel Pump Relay |
| ER4 | - | - |
| ER5 | - | - |
| ER6 | - | Speaker Relay |
| ER7 | - | Low Beam Relay |
| ER8 | - | A/C compressor relay |
| ER9 | - | High Beam Relay |
| ER10 | - | Starter Relay 1 |
| ER11 | - | Main Relay |
| ER12 | - | High-speed fan relay |
| ER13 | - | Blower Relay |
| ER14 | - | Starter Relay 2 |
| ER15 | - | - |
| ER16 | - | Low-speed fan relay |
