Volvo V70 2011 Fuse Box Info
Passenger compartment fuse box location:
The fuse boxes A and B in the passenger compartment are located under the glove box.

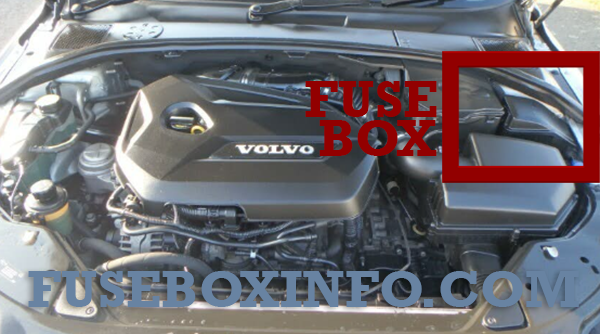

Engine compartment fuse box location:
Luggage compartment fuse box location:
The rear compartment fuse box is located on the left side of the trunk behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box (A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Primary fuse, control module, audio Bass speaker |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | 15A | 12 V socket, cargo area |
| 8 | 20A | Control panel, driver's door |
| 9 | 20A | Control panel, front passenger door |
| 10 | 20A | Control panel, rear passenger door, righ |
| 11 | 20A | Control panel, rear passenger door, left |
| 12 | 20A | Keyless* |
| 13 | 20A | Power seat driver's side* |
| 14 | 20A | Power seat passenger side* |
| 15 | 15A | Folding head restraint* |
| 16 | - | - |
| 17 | 10A | Radio, Display, RTI* |
| 18 | 15A | Infotainment system |
| 19 | 5A | Telephone, BluetoothTM* |
| 20 | - | - |
| 21 | 5A | Sun roof*, interior lighting roof, climate sensor |
| 22 | 15A | Cigarette lighter Rear Seat Entertainment (RSE)* |
| 23 | 15A | Seat heating (passenger side) |
| 24 | 15A | Seat heating (driver's side) |
| 25 | - | - |
| 26 | 15A | Seat heating, rear passenger side* right |
| 27 | 15A | Seat heating, rear passenger side* left |
| 28 | 5A | Parking assistance, Parking camera*, RTI* |
| 29 | 10A | Control module AWD* |
| 30 | 10A | Active chassis Four-C* |
* Option/accessory
Passenger compartment fuse box (B):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear wiper |
| 2 | - | - |
| 3 | 7.5A | Interior lighting, Power driver's seat* |
| 4 | 5A | Information display (DIM) |
| 5 | 10A | Adaptive cruise control, ACC*, collision warning system* |
| 6 | 7.5A | Interior lighting, Rain sensor |
| 7 | 7.5A | Steering wheel module |
| 8 | 10A | Central locking system rear, fuel filler flap |
| 9 | 15A | Washers |
| 10 | 15A | Windscreen washers |
| 11 | 10A | Opening tailgate |
| 12 | 10A | Lock tailgate |
| 13 | 20A | Fuel pump |
| 14 | 5A | Remote control key receiver, Alarm*, Climate |
| 15 | 15A | Steering lock |
| 16 | 5A | Alarm/OBDII |
| 17 | - | - |
| 18 | 10A | Airbag |
| 19 | 5A | Collision warning system, radar front |
| 20 | 7.5A | Accelerator pedal, electric engine block heater (diesel), power door mirrors*, seat heating, rear* |
| 21 | 15A | Infotainment (ICM), CD & Radio |
| 22 | 5A | Brake light |
| 23 | 20A | Sun roof* |
| 24 | 5A | mmobiliser |
* Option/accessory
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Primary fuse CEM KL30B |
| 2 | 50A | Primary fuse CEM KL30A |
| 3 | 60A | Primary fuse RJBA KL30 |
| 4 | 60A | Primary fuse CJB KL30 |
| 5 | 60A | Primary fuse CJB 15E KL30 |
| 6 | - | - |
| 7 | 100A | PTC Air preheater* |
| 8 | 20A | Headlight washers* |
| 9 | 30A | Windscreen wipers |
| 10 | 25A | Parking heater* |
| 11 | 40A | Ventilation fan |
| 12 | - | - |
| 13 | 40A | ABS pump |
| 14 | 20A | ABS valves |
| 15 | - | - |
| 16 | 10A | Headlamp levelling* (Xenon, Active Xenon) |
| 17 | 20A | Primary fuse CEM |
| 18 | 5A | ABS 15-feed |
| 19 | 5A | Speed related power steering* |
| 20 | 10A | Engine Control Module (ECM), transm. SRS |
| 21 | 10A | Heated washer nozzles* |
| 22 | 5A | Vacuum pump 5-cyl Petrol Turbo and GTDI Electro-hydraulic power steering 1.6 DRIVe |
| 23 | 5A | Lighting panel |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | 5A | Relay, engine compartment box |
| 28 | 20A | Auxiliary lights* |
| 29 | 15A | Horn |
| 30 | 10A | Engine Control Module (ECM) |
| 31 | 15A | Control module, automatic gearbox* |
| 32 | 15A | A/C compressor |
| 33 | 5A | Relay coils |
| 34 | 30A | Starter motor relay |
| 35 |
10A 20A - 10A |
Ignition coils 4-cyl. petrol, Glow control module Ignition coils 5, 6-cyl. petrol - EGR, TCV (2.0D) HP Fuel pump (1.6D) |
| 36 |
10A 15A |
Engine control module, Throttle petrol Engine control module, Throttle diesel |
| 37 |
15A 15A |
Injection system (4, 5, 6-cyl. petrol), Mass air flow sensor (5, 6-cyl. petrol), ECM (6-cyl.) Mass air flow sensor (2.0D) |
| 38 | 10A | Engine valves |
| 39 |
15A 10A |
EVAP, Lambda-sond, Injection (petrol) Lambda-sond (4-cyl. petrol, 5-cyl. diesel) |
| 40 |
- 20A |
- Vacuum pump, crankcase valve (5-cyl. turbo, 2.0 GTDI) |
| 41 | 5A | Crankcase ventilation heater (5-cyl. diesel) |
| 42 |
60A 70A |
Glow plugs (4-cyl. diesel) Glow plugs (5-cyl. diesel) |
| 43 |
60A 80A - |
Cooling fan (4 - 5-cyl. petrol) Cooling fan (6-cyl. petrol), (5-cyl. diesel) - |
| 44 |
80A 100A |
Electro-hydraulic power steering (1.6D) Electro-hydraulic power steering (other) |
* Option/accessory
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Electric parking brake, left |
| 2 | 30A | Electric parking brake, right |
| 3 | 30A | Rear window defroster |
| 4 | 15A | Trailer socket 2* |
| 5 | 30A | POT (automatic tailgate opening)* |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 40A | Trailer socket 1* |
| 12 | - | - |
* Option/accessory
