Suzuki Grand Vitara 2022 Fuse Box Info

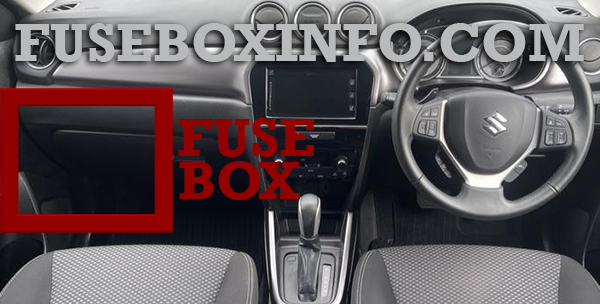

Passenger compartment fuse box location:
The interior fuse box is behind the glove box on the passinger’s side.

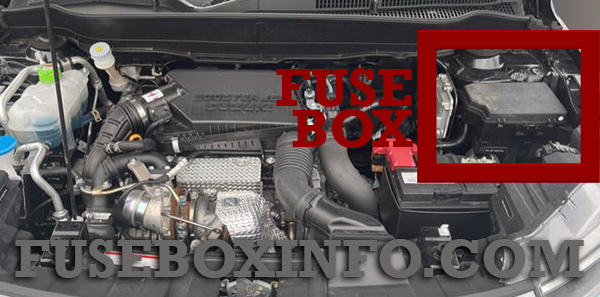

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window |
| 2 | 10A | Meter |
| 3 | 15A | Ignition coil |
| 4 | 5A | Ignition-1 signal 2 |
| 5 | 20A | Shift lever* |
| 6 | 10A | CHG |
| 7 | 10A | STL2 |
| 8 | 20A | Door |
| 9 | 15A | Steering lock |
| 10 | 5A | Hazard |
| 11 | 5A | A-STOP controller |
| 12 | 10A | Rear fog lamp |
| 13 | 5A | ABS/ESP® control module |
| 14 | 15A | Seat heater* |
| 15 | 5A | Ignition-1 signal 3 |
| 16 | 10A | Dome light-2 |
| 17 | 5A | Dome light |
| 18 | 15A | Radio |
| 19 | 5A | CONT |
| 20 | 5A | Key-2* |
| 21 | 20A | Power window timer |
| 22 | 5A | Key* |
| 23 | 15A | Horn |
| 24 | 5A | Tail light (Left) |
| 25 | 10A | Tail light |
| 26 | 10A | Air bag |
| 27 | 10A | Ignition-1 signal |
| 28 | 10A | Back-up light |
| 29 | 5A | ACC-3* |
| 30 | 20A | Rear defogger |
| 31 | 10A | Heated mirror* |
| 32 | 15A | ACC-2 |
| 33 | 5A | ACC |
| 34 | 10A | Wiper |
| 35 | 5A | Ignition-2 signal |
| 36 | 15A | Washer |
| 37 | 25A | Front wiper |
| 38 | 10A | Stop light |
* Feature not available in the vehicle
Engine compartment fuse box (Main fuses/Fuse box) - K15C engine model:
| Fuse/Relay N° | Rating | Functions |
| 1 | 100A | FL2 |
| 2 | 80A | FL3 |
| 3 | 100A | FL4 |
| 4 | 50A | FL5 |
| 5 | - | Blank |
| 6 | - | Blank |
| 7 | 10A | CPRSR |
| 8 | 15A | Transmission |
| 9 | 20A | S/R |
| 10 | 30A | B/U |
| 11 | - | Blank |
| 12 | 30A | Starting motor |
| 13 | 40A | Blower fan |
| 14 | 15A | SPARE |
| 15 | 7.5A | SPARE |
| 16 | 50A | Ignition switch 2 |
| 17 | 20A | SPARE |
| 18 | 25A | SPARE |
| 19 | 30A | SPARE |
| 20 | 40A | ABS motor |
| 21 | 30A | Radiator fan |
| 22 | 20A | FI |
| 23 | 25A | ABS control module |
| 24 | 15A | Headlight (Right) |
| 25 | - | Blank |
| 26 | - | Blank |
| 27 | - | Blank |
| 28 | - | Blank |
| 29 | 5A | Starting Signal |
| 30 | 10A | Headlight HI (Left) |
| 31 | 10A | Headlight HI (Right) |
| 32 | 20A | FI 2 |
| 33 | 10A | CPRSR 2 |
| 34 | 15A | Transmission 2 |
| 35 | 15A | SPARE |
| 36 | 10A | SPARE |
| 37 | 40A | Ignition switch 11 |
| 38 | 20A | Headlight HI |
| 39 | 15A | 4WD |
| 40 | - | Blank |
| 41 | 15A | Headlight (Left) |
| 42 | - | Blank |
| 43 | 200A | FL6 |
| 44 | - | Blank |
Engine compartment fuse box (Main fuses/Fuse box) - M15D engine model:
| Fuse/Relay N° | Rating | Functions |
| 1 | 100A | FL3 |
| 2 | 80A | FL4 |
| 3 | 100A | FL5 |
| 4 | 60A | FL6 |
| 5 | 100A | FL7 |
| 6 | 10A | IG1 SIG4 |
| 7 | 10A | ABS 2 |
| 8 | 10A | CPRSR |
| 9 | 10A | Ignition coil |
| 10 | 10A | Battery fan |
| 11 | 10A | Inverter water pump |
| 12 | 30A | ABS motor 3 |
| 13 | 20A | Ignition switch 12 |
| 14 | 30A | HEV main 2 |
| 15 | 15A | S/V |
| 16 | 25A | HEV main |
| 17 | 10A | ICU |
| 18 | 10A | ABS 4 |
| 19 | 10A | Cont 2 |
| 20 | - | Blank |
| 21 | - | Blank |
| 22 | - | Blank |
| 23 | 10A | O2 Heater |
| 24 | 20A | FI main |
| 25 | 20A | S/R |
| 26 | 30A | B/U |
| 27 | - | Blank |
| 28 | - | Blank |
| 29 | 40A | Blower fan |
| 30 | 5A | SPARE |
| 31 | 7.5A | SPARE |
| 32 | 50A | Ignition switch 2 |
| 33 | 20A | SPARE |
| 34 | 25A | SPARE |
| 35 | 30A | SPARE |
| 36 | 30A | ABS motor 2 |
| 37 | 30A | ABS control module |
| 38 | 10A | ABS 3 |
| 39 | 25A | FI main 2 |
| 40 | 15A | Headlight (Right) |
| 41 | - | Blank |
| 42 | 30A | ABS motor |
| 43 | 10A | FI 2 |
| 44 | 10A | FI 3 |
| 45 | 10A | FI |
| 46 | 10A | Headlight HI (Left) |
| 47 | 10A | Headlight HI (Right) |
| 48 | 10A | HEV 2 |
| 49 | 10A | HEV 3 |
| 50 | 10A | HEV |
| 51 | 15A | SPARE |
| 52 | 10A | SPARE |
| 53 | 40A | Ignition switch 11 |
| 54 | 20A | Headlight HI |
| 55 | - | Blank |
| 56 | 10A | ECM |
| 57 | 15A | Headlight (Left) |
| 58 | 30A | Water pump |
| 59 | 60A | Radiator fan |
| 60 | - | Blank |
| 61 | 175A | FL1 |
| 62 | 120A | FL2 |
