Suzuki XL6 2022 Fuse Box Info

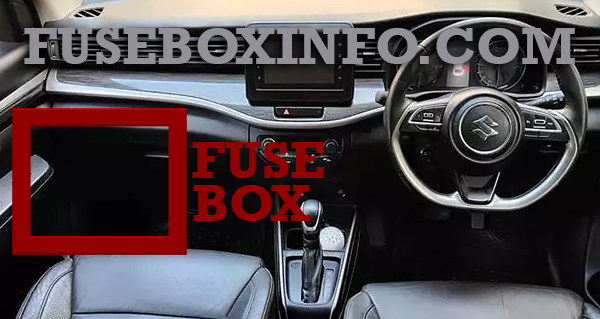

Passenger compartment fuse box location:
The interior fuse box is behind the glove box on the passinger’s side.

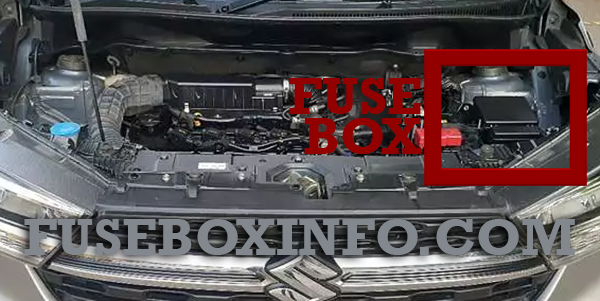

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window |
| 2 | 10A | Meter |
| 3 | 15A | Ignition coil |
| 4 | 5A | Ignition-1 signal 2 |
| 5 | 20A | Shift |
| 6 | 20A | S/R |
| 7 | - | Blank |
| 8 | 20A | Door lock |
| 9 | 15A | Steering lock |
| 10 | 10A | Hazard light |
| 11 | 5A | AUTO-STOP |
| 12 | 10A | Rear fog lamp |
| 13 | 5A | ABS control module |
| 14 | 15A | Rear air conditioner |
| 15 |
5A 5A |
Ignition-1 signal 3 CNG Ignition-1 |
| 16 | 10A | Dome light-2 |
| 17 | 5A | Dome light |
| 18 | 15A | Radio |
| 19 | 5A | Controller |
| 20 | 5A | Key2 |
| 21 | 20A | Power window timer |
| 22 | 5A | Key |
| 23 | 15A | Horn |
| 24 | 5A | Tail light (Left) |
| 25 | 10A | Tail light |
| 26 | 10A | Air bag |
| 27 | 10A | Ignition-1 signal |
| 28 | 10A | Back-up light |
| 29 | 5A | Accessory 3 |
| 30 | 20A | Rear defogger |
| 31 | 10A | Heated mirror |
| 32 | 15A | Accessory 2 |
| 33 | 5A | Accessory |
| 34 | 10A | Rear wiper |
| 35 | 5A | Ignition-2 signal |
| 36 | 15A | Washer |
| 37 | 25A | Front wiper |
| 38 | 10A | Stop light |
Engine compartment fuse box (Main fuses on battery/Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | FL1 |
| 2 | 100A | FL2 |
| 3 | 80A | FL3 |
| 4 | 100A | FL4 |
| 5 | 50A | FL5 |
| 6 | 200A | FL6 |
| 7 | 30A | Starting motor |
| 8 | 40A | Blower fan |
| 9 | - | Blank |
| 10 | 40A | ABS motor |
| 11 | 40A | Ignition switch |
| 12 | 30A | Back up light |
| 13 | 5A | ECM |
| 14 | 20A | Front fog light |
| 15 | - | Blank |
| 16 | 25A | ABS solenoid |
| 17 | 15A | S/V |
| 18 | - | Blank |
| 19 | 25A | Headlight HI |
| 20 | 30A | Radiator fan |
| 21 | - | Blank |
| 22 | - | Blank |
| 23 | 7.5A | CNG Valve |
| 24 | 15A | Headlight (Left) |
| 25 | 15A | Headlight (Right) |
| 26 | - | Blank |
| 27 | 50A | Ignition switch -2 |
| 28 | 15A | Auto Transmission |
| 29 | 15A | Fuel Injection |
| 30 | 10A | CPRSR |
| 31 | 15A | Headlight HI (Left) |
| 32 | 15A | Headlight HI (Right) |
| 33 | 5A | Starting Signal |
| 34 | 7.5A | CNG |
| 35 | 25A | H/L HI |
| 36 | 15A | Headlight HI (Right) |
| 37 | 15A | Headlight HI (Left) |
