Suzuki S-Presso 2022 Fuse Box Info

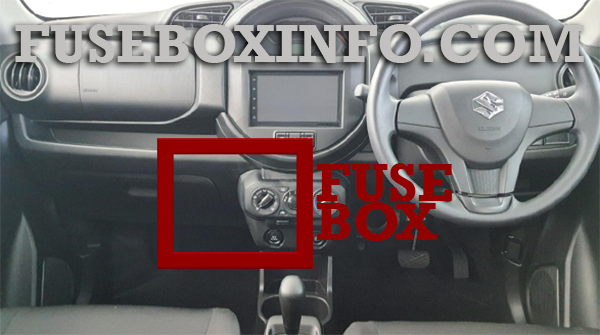

Passenger compartment fuse box location:
The interior fuse box is under dashboard on the passinger’s side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Blank |
| 2 | 20A | WIP WASH (Front wiper & washer) |
| 3 | 10A | IG2 SIG (Ignition-2 signal) |
| 4 | 10A | Meter |
| 5 | 15A | IG COIL (Ignition coil) |
| 6 | 10A | BACK (Back-up light) |
| 7 | 10A | ST SIG (Starting signal) |
| 8 | 15A | ACC2 (Accessory-2) |
| 9 | 10A | ACC1 (Accessory-1) |
| 10 | - | Blank |
| 11 | 10A | A/B (Airbag) |
| 12 | 10A | ABS |
| 13 | 10A | IG1 SIG (Ignition-1 signal) |
| 14 | - | Blank |
| 15 | 20A | D/L (Door lock) |
| 16 | 10A | HAZ (Hazard warning light) |
| 17 | 10A | TAIL (Tail light) |
| 18 | 15A | Radio |
| 19 | 10A | DOME (Dome light) |
| 20 | 10A | DOME2 (Dome light-2) |
| 21 | 30A | P/W (Power window) |
Engine compartment fuse box (Main fuses on battery/Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 120A | FL1 |
| 2 | 100A | FL2 |
| 3 | 20A | Spare fuse |
| 4 | 25A | Spare fuse |
| 5 | 30A | Spare fuse |
| 6 | 40A | P/S (Power steering) |
| 7 | - | Blank |
| 8 | 10A | CPRSR (A/C compressor |
| 9 | 15A | FI (Fuel Injection) |
| 10 | 15A | H/L L (Headlight (Left)) |
| 11 | 15A | H/L R (Headlight (Right)) |
| 12 | 30A | ST (Starting motor) |
| 13 | 30A | RDTR (Radiator fan) |
| 14 | - | Blank |
| 15 | 40A | IGN2 (Ignition switch 2 |
| 16 | 30A | Lamp |
| 17 | 30A | T/M Pump (AGS Pump) |
| 18 | 30A | B/U (Battery backup) |
| 19 | 10A | STOP (Stop Light) |
| 20 | - | Blank |
| 21 | 15A | Horn |
| 22 | 30A | BLW (Blower fan) |
| 23 | - | Blank |
| 24 | 10A | ST SIG (Starting signal) |
| 25 | - | Blank |
| 26 | - | Blank |
| 27 | - | Blank |
| 28 | - | Blank |
| 29 | - | Blank |
| 30 | - | Blank |
| 31 | 40A | ABS MOT (ABS motor) |
| 32 | 25A | ABS SOL (ABS solenoid) |
| 33 | - | Blank |
| 34 | 10A | T/M (Transmission) |
| 35 | 10A | T/M2 (Transmission 2) |
| 36 | 40A | IGN (Ignition switch) |
| 37 | 5A | Spare fuse |
| 38 | 10A | Spare fuse |
| 39 | 15A | Spare fuse |
| 40 | 7.5A | Spare fuse |
